Product Description
Special Features
• Full Size Unit. Other somewhat similar looking units are smaller and do not provide as good of image.
Eyepieces and Magnification
• Three Magnifications: 40x, 100x, and 400x.
• Eyepiece Included: Wide Field 10x.

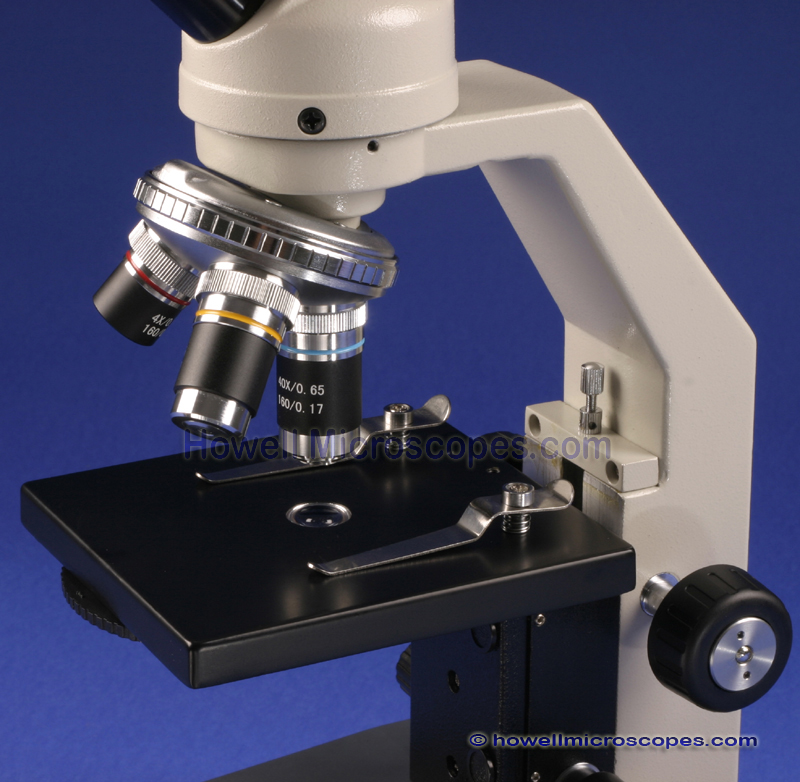

• Three DIN Achromatic Objectives: 4x, 10x, and 40x.
• Spring Loaded 40x Objective to Protect Slides.
Illumination
• High Wattage 220V/20W Base Transmitted Illumination.
Microscope Head
• 45 Degree Inclined Monocular Head, Rotatable 360 Degrees.
Condenser – Iris
• Substage Disc Diaphragm for Lighting Control.
Stage Specifications

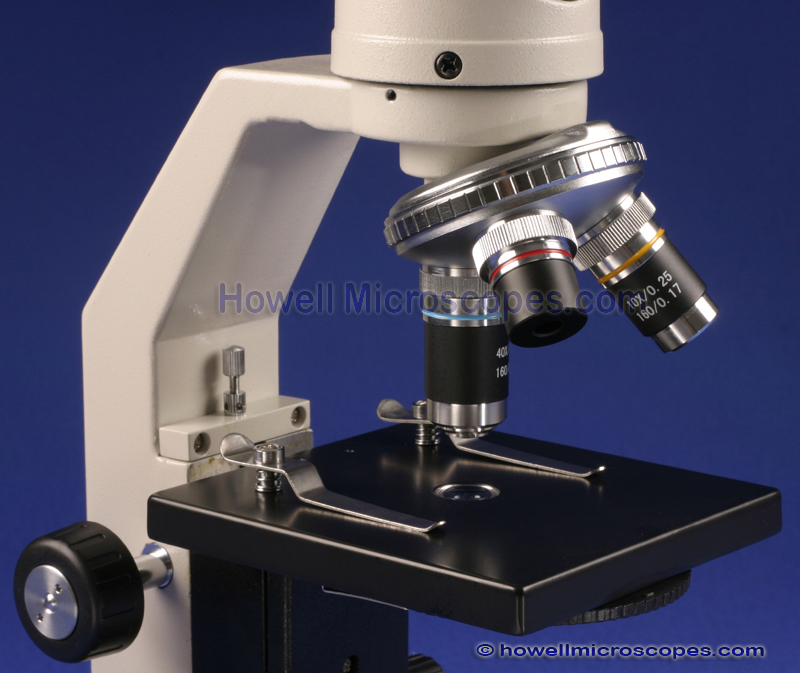

• Large Stage with Slide Clips.
• This microscope has a large stage as well as two slide clips that hold the prepared microscope slide in place while observing the biological specimen.
Focusing
• Fine and Coarse Focusing Knobs on Both Sides of Microscope.
• Tension Adjustable Coarse Focusing.
• Adjustable Screw-Stop to Limit Coarse Range to Protect Slides.
Frame – Base – Size – Weight
• Total Overall Height of Microscope: 15 Inches (390mm).
• The Base is 8×7 Inches (210mm x 170mm).
• Instrument Weight: 8 lbs.
Included Items
• Includes: Instruction Manual, Extra Bulb, and Dust Cover.
Other Specifications
• Ships in Molded Styrofoam Container for protection.
• Manufactured under ISO: 9001 Standards.
• 220 VAC Power Requirement.
• High Quality Solid Construction!
• Precision Made Glass Optics!
• Brand New, Never Used!
