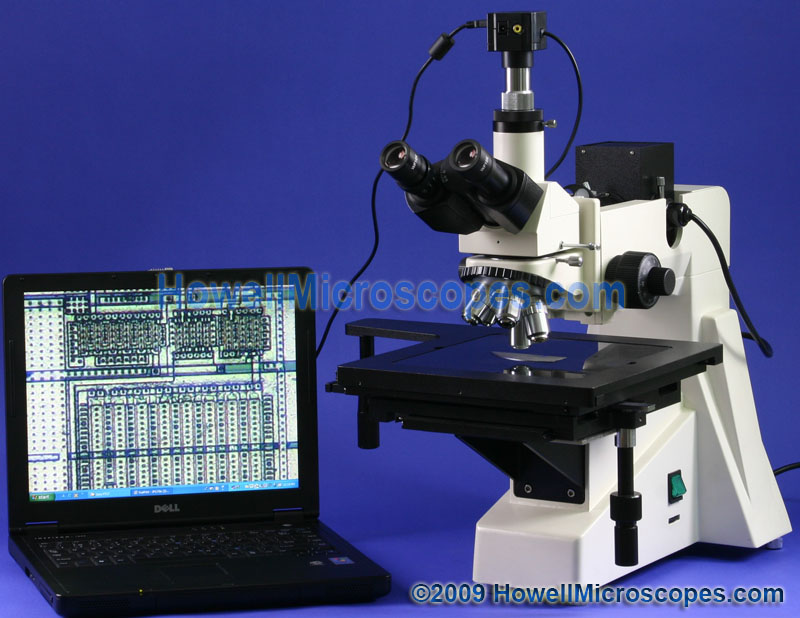

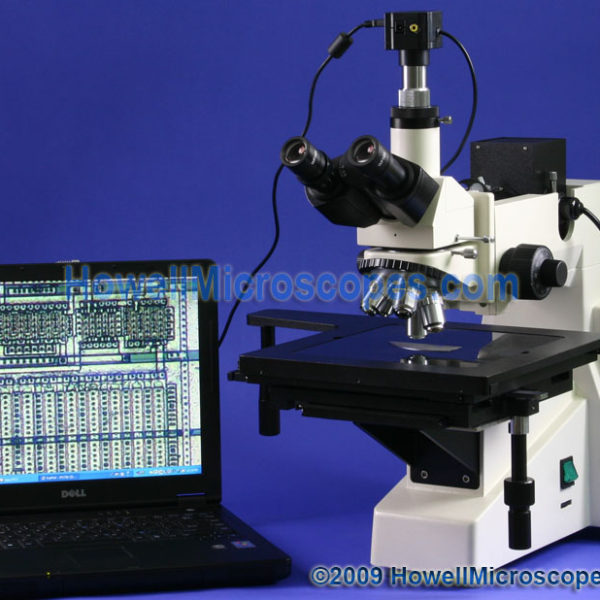

USB computer connected camera included. Computer/Laptop not included. Shape of microscope camera may vary from what is shown.
047d000m-m_3047d000m-m_2047d000m-m_1047d000m-c_4047d000m-c_3047d000m-c_2047d000m-c_1Aluminum Case Included

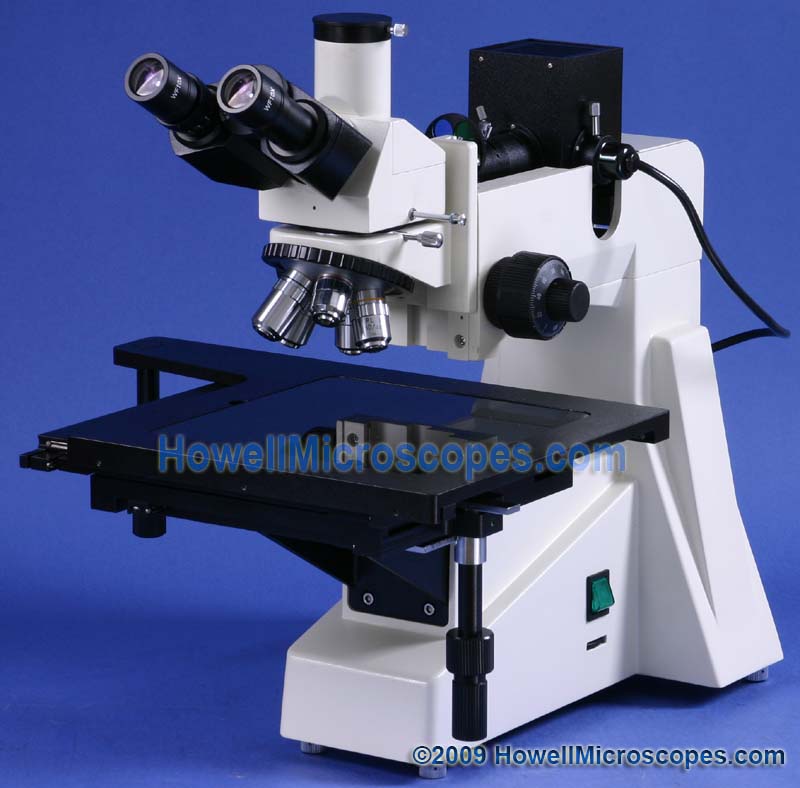

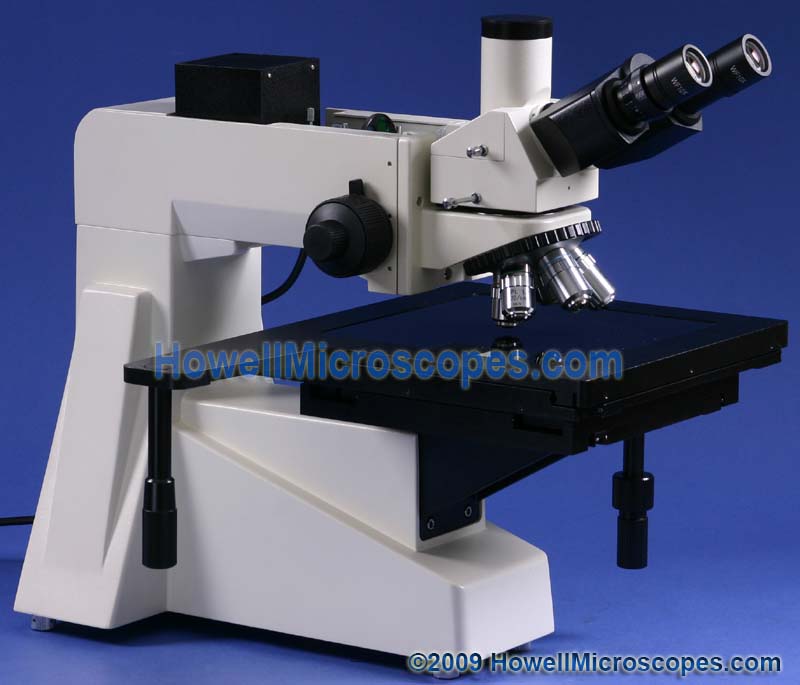

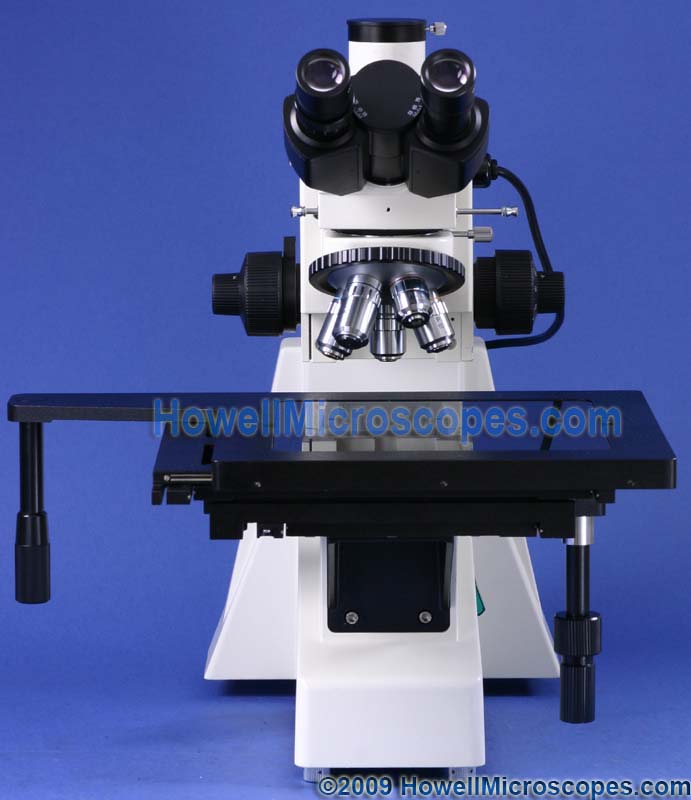

50-800x EPI-ILLUMINATION TRINOCULAR UPRIGHT METALLURGICAL METALLOGRAPHIC MICROSCOPE OBJECTIVES MOVE UP / DOWN

Microscope Product Overview:

  • Professional Grade Large Upright Trinocular Metallurgical – Metallographic Microscope!
  • Perfect for Detailed Examination and Micro-Analysis of a Metallic Surface!
  • Extra Large – Heavy Duty Frame and Stage for Professional Use.
  • Super Sized Stage with Large Travel Distance: 11 Inches (X-Direction) x 11 Inches (Y-Direction).
  • Perfect for Analyzing Large Specimens (such as silicon wafers) as the Large Stage Travel allows specimen to be viewed without needing to continually relocate specimen on stage as would be needed for scopes with small travel.
  • Upright Design (Objectives Above the Stage).
  • Stationary Fixed Stage. The Head moves up and down to focus, but the Stage remains in a fixed position. Contact us for details about our other version with moving stage and fixed head.
  • Obtain Highly Magnified Images of Surface Structure.
  • Excellent for a Variety of Industrial and Research Applications including Metallurgical Labs, Silicon Wafer Inspection, Industrial Inspection – Quality Control, and Foundries!
  • Great Quality Imaging at a Super Low Price!
  • Compare to Similar Units costing Thousands More with name brands!
  • Advanced Epi-Illumination Design provides Maximum Lighting for Optimal Image Clarity.
  • Light Travels Through the Objective, Reflects off Object’s Surface, and goes Back Into Objective!
  • Polarizing System: Includes capability for both cross polarization and plane polarization with the included polarizer and analyzer. Other scopes may have a simple plane polarizer, but don’t include the advanced analyzer necessary to obtain cross polarization.



SKU: MS-47D-COM Category:

Product Description



FREE Bonus

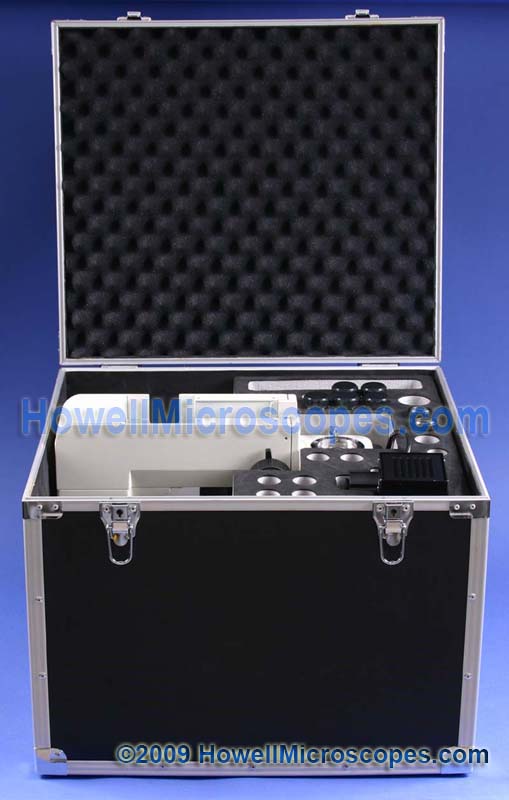

  • BONUS: Includes a carrying case with Precut Foam for safe transportation of your precision instrument.
Eyepieces and Magnification
  • Five Magnifications: 50x, 100x, 200x, 400x, and 800x.
  • Eyepiece Set Included: Wide Field 10x.
  • Long Working Distance Objectives! Great for Special Applications where a little More Room is Needed Between Objective and Specimen!
  • Five PLAN DIN Objectives: 5x (18.3mm W.D.), 10x (8.9mm L.W.D.), 20x (8.7mm L.W.D.), 40x (3.7mm L.W.D.), 80x (0.96mm L.W.D.).
  • These PLAN Objectives are Superior Quality and the Most Expensive. The Achromatic and Semi-Plan as Found on Other Scopes are the Cheaper Quality.
Illumination
  • Variable Intensity 20W Halogen Epi-Illumination in Upper Rear Housing.
Head – Interpupillary Distance – Diopter

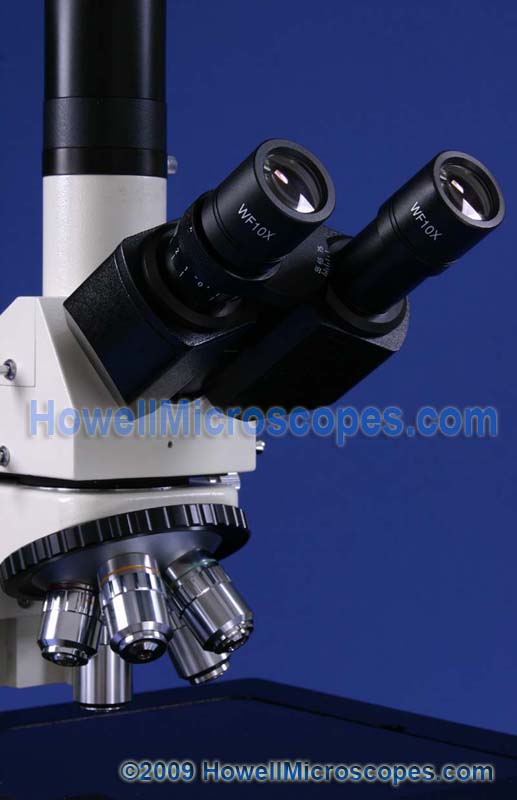

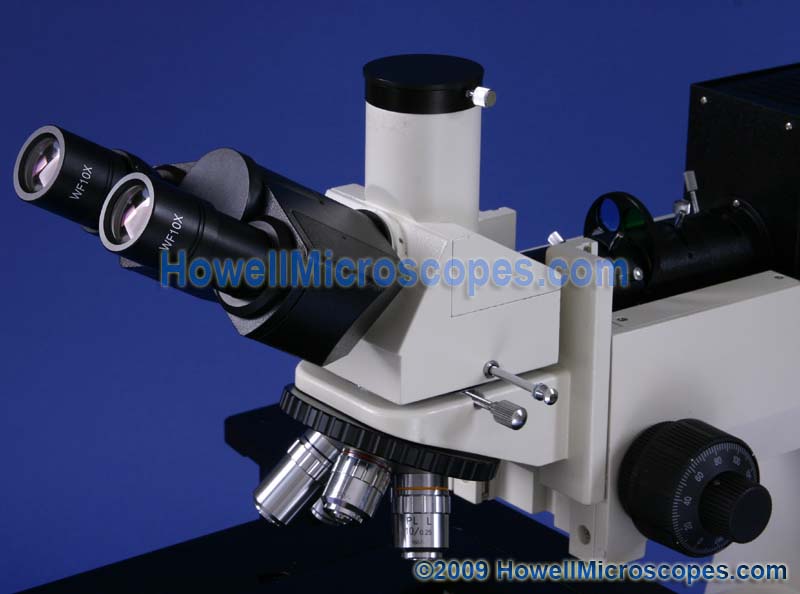

  • 45 Degree Inclined Trinocular Head.
  • Adjusts to the Distance Between your Eyes: 53 to 75mm InterPupillary Distance.
  • Diopter Adjustment to Correct for Your Specific Vision Needs.
  • Anti-Fungus Coatings.
Condenser – Iris – Filters

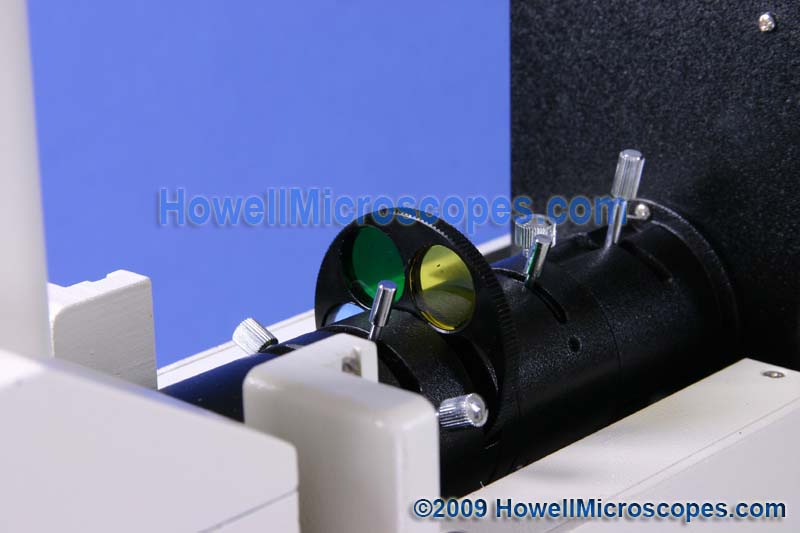

  • Filters Included on Convenient Built-In Filter Dial: Yellow, Blue, Green, Frosted.
  • Includes Aperature and Field Diaphragms.
Stage Specifications

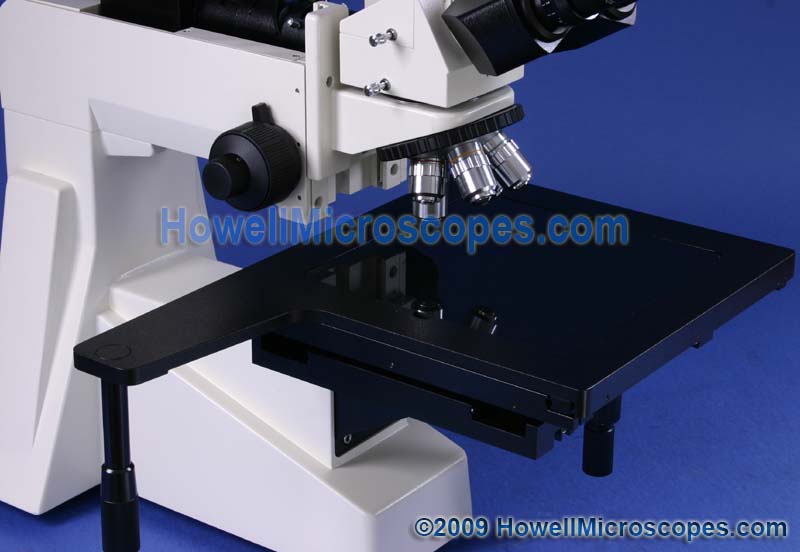

  • Extra Large Mechanical X-Y Movable Stage: Size 275mm x 275mm.
  • Low Position Coaxial X-Y Stage Movement Knobs – Range of Movement: 84mm (X-Direction) x 70mm (Y-Direction).
  • Extra Stage Movement is Accomplished by Moving the Top Sliding Stage Plate. Control Arm on Left Side of Scope is Used to Move the Top Plate in X and Y directions. Simply Pull the Arm in the Desired Direction. This Movement is in Addition to Any Done by Using the Low Posion Coaxial X-Y Knobs.
Focusing
  • Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
  • Maximum Distance From Bottom of Longest Objective to Top of Stage: 28mm.
  • Coarse Adjustment Travel Range: 31mm (Head Movement Distance Up/Down).
  • Fine Adjustment Division: 0.0008mm.
  • Adjustable Lock Ring Stop to Limit Coarse Range to Protect Specimens.
  • Tension Adjustable Coarse Focusing.
Frame – Base – Size – Weight
  • Total Overall Height of Microscope: 475mm.
  • Instrument Weight: 41 lbs.
Included Items
  • Includes:  Extra Bulb.
  • Includes One Black and One White Replaceable Square Stage Plate.
Additional Information
  • Manufactured under ISO: 9001 Standards.
  • 110 VAC Power Requirement (Contact us about 220V availability).
  • High Quality Solid Construction!
  • Precision Made Glass Optics!
  • Brand New, Never Used!
Product Warranty
  • Warranty is 1 years on all microscope equipment.
  • The microscope warranty covers problems arising from normal usage.
  • We will repair or replace your defective microscopy equipment as needed during the warranty period.
Optional Accessories
  • Optional 100x Dry Objective. This objective does not use immersion oil.
