| Video and Photography |
- High Resolution 14 Mega Pixel High Resolution HDMI Camera
- Image resolution: 4320*3240 (for TF card) 1920*1080 @ 30FPS(for TF card)
- Video format: MOV(for TF card)
- Video recorder: 1920*1080 @ 30FPS (for TF Card)
- USB Video resolution : 1920*1080 @ 30FPS
- Camera with HMDI USB 2.0 two output

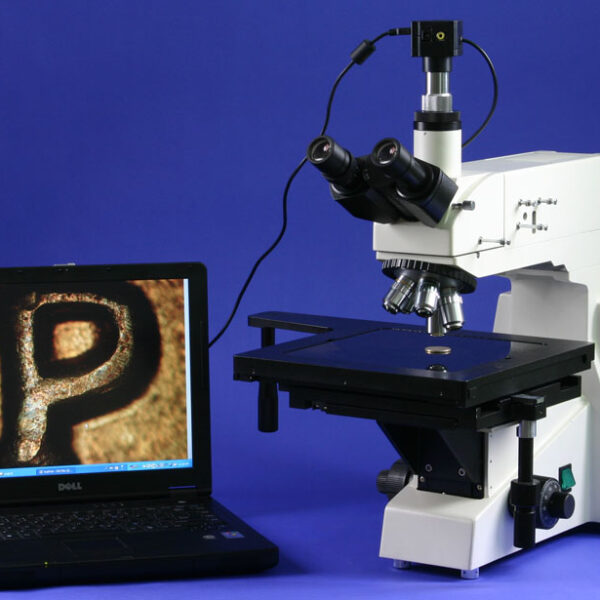

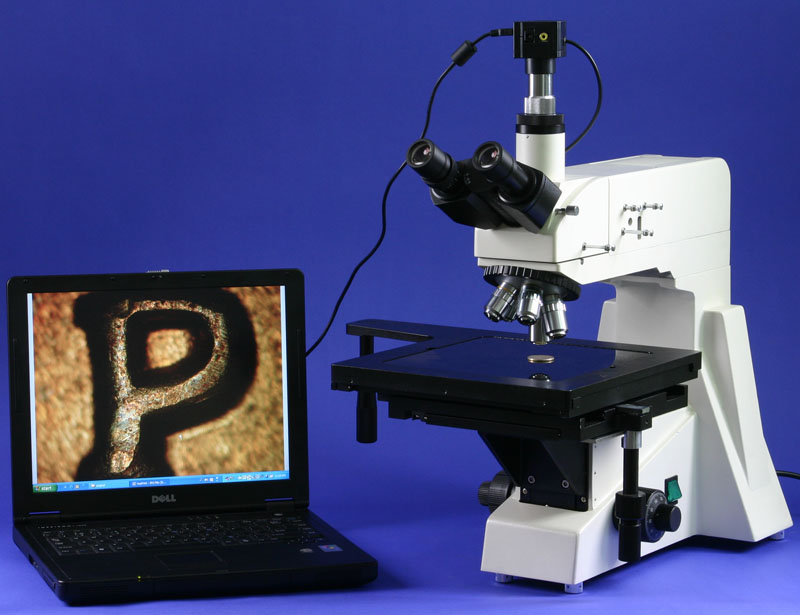

- HDMI Monitor and Computer connected digital microscope camera connects via USB2.0. Includes USB cable and MS Windows software.
- Complete Digital Microscopy Solution Included.
- Computer connected digital microscope camera connects via HDMI / USB2.0. Includes USB cable and MS Windows software.
- Includes measuring capability with the software.
|
|
| FREE Bonus |
- Includes: Stage Micrometer with 1mm in 100 divisions, 0.01mm resolution for precise calibration of measuring reticle.
- Includes: Extra WF10x Eyepiece with Built-In Measuring Reticle, X-Scale, 10mm in 100 divisions, 0.1mm Resolution.
- Call Us Today to Discuss Your Measuring Needs and How This Microscope Will Work for You!
- BONUS: Includes a carrying case with Precut Foam for safe transportation of your precision instrument.
|
|
| Eyepieces and Magnification |
- Five Magnifications: 50x, 100x, 200x, 400x, and 800x.

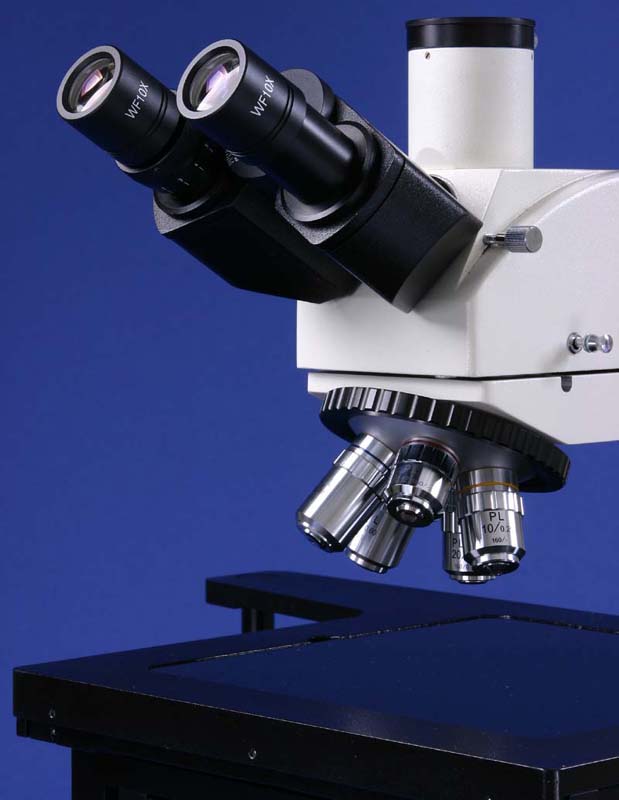

- Eyepiece Set Included: Wide Field 10x.
- Long Working Distance Objectives! Great for Special Applications where a little More Room is Needed Between Objective and Specimen!
- Five PLAN DIN Objectives: 5x (18.3mm W.D.), 10x (8.9mm L.W.D.), 20x (8.7mm L.W.D.), 40x (3.7mm L.W.D.), 80x (0.96mm L.W.D.).
- These PLAN Objectives are Superior Quality and the Most Expensive. The Achromatic and Semi-Plan as Found on Other Scopes are the Cheaper Quality.
|
|
| Illumination |
- Variable Intensity 20W Halogen Epi-Illumination in Internal Upper Rear Housing.
|
|
| Head – Interpupillary Distance – Diopter |
- 45 Degree Inclined Trinocular Head.
- Adjusts to the Distance Between your Eyes: 53 to 75mm InterPupillary Distance.
- Diopter Adjustment to Correct for Your Specific Vision Needs.
- Anti-Fungus Coatings.
|
|
| Condenser – Iris – Filters |
- Side Slide-In Filter Holder.
- Four Filters Included: Yellow, Blue, Green, Frosted.
- Includes Aperature and Field Diaphragms.
- Condenser Alignment Screws.
|
|
| Stage Specifications |

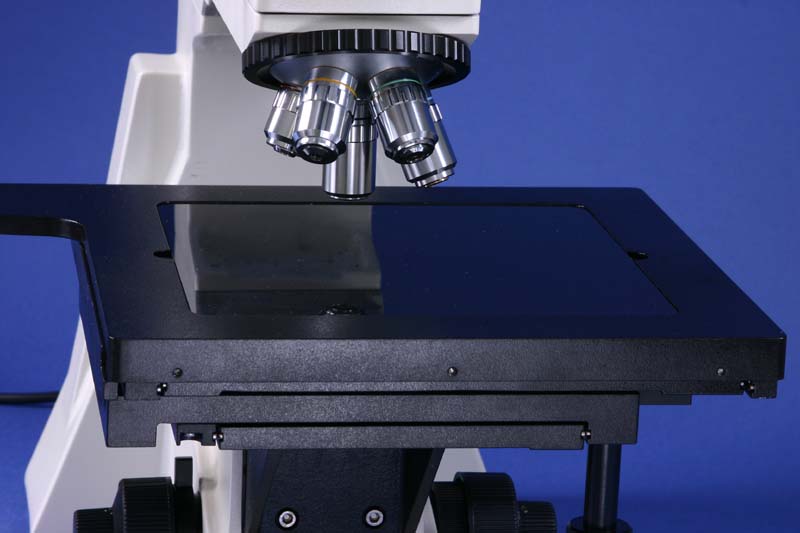

- Extra Large Mechanical X-Y-Z Movable Stage: Size 275mm x 275mm.
- Low Position Coaxial X-Y Stage Movement Knobs – Range of Movement: 84mm (X-Direction) x 60mm (Y-Direction).
- Extra Stage Movement is Accomplished by Moving the Top Sliding Stage Plate. Control Arm on Left Side of Scope is Used to Move the Top Plate in X and Y directions. Simply Pull the Arm in the Desired Direction. This Movement is in Addition to Any Done by Using the Low Posion Coaxial X-Y Knobs.
|
|
| Focusing |
- Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
- Maximum Distance From Bottom of Longest Objective to Top of Stage: 28mm.
- Coarse Adjustment Travel Range: 31mm (Stage Movement Distance Up/Down).
- Fine Adjustment Division: 0.0008mm.
- Adjustable Lock Ring Stop to Limit Coarse Range to Protect Specimens.
- Tension Adjustable Coarse Focusing.
|
|
| Frame – Base – Size – Weight |
- Total Overall Height of Microscope: 477mm.
- Instrument Weight: 40 lbs.
|
|
| Included Items |
- Includes: Dust Cover, Instruction Manual, and Extra Bulb.
- Includes One Black and One White Replaceable Square Stage Plate.
|
|
| Other Specifications |
- Manufactured under ISO: 9001 Standards.
- 220 VAC Power Requirement (Contact us about 110V availability).
- High Quality Solid Construction!
- Precision Made Glass Optics!
- Brand New, Never Used!
|
|
| Manufacturer’s Warranty |
- Warranty is 1 year/s on all microscope equipment.
- The microscope warranty covers problems arising from normal usage.
- We will repair or replace your defective microscopy equipment as needed during the warranty period.
|
|
| Optional Accessories |
- Optional 100x Dry Objective. This objective does not use immersion oil.
|
