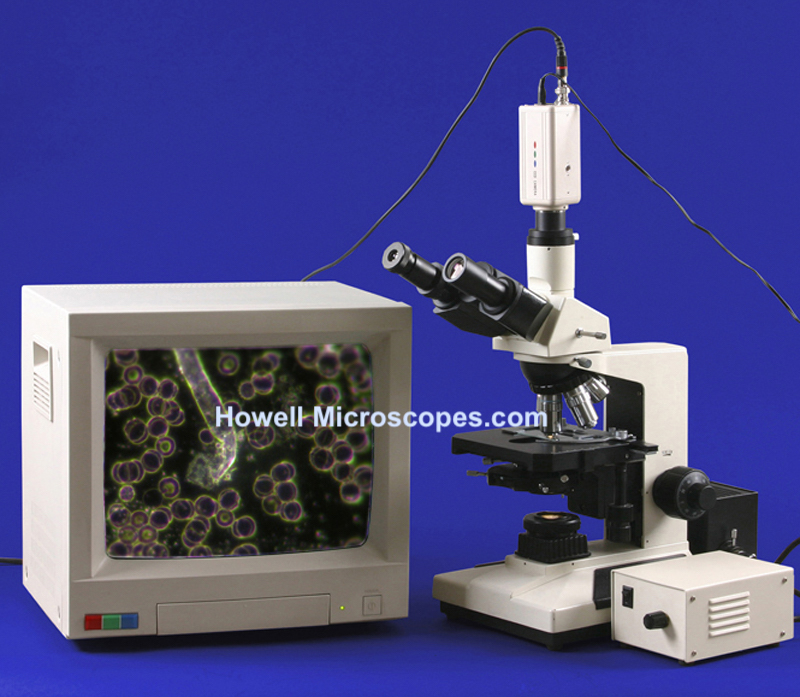

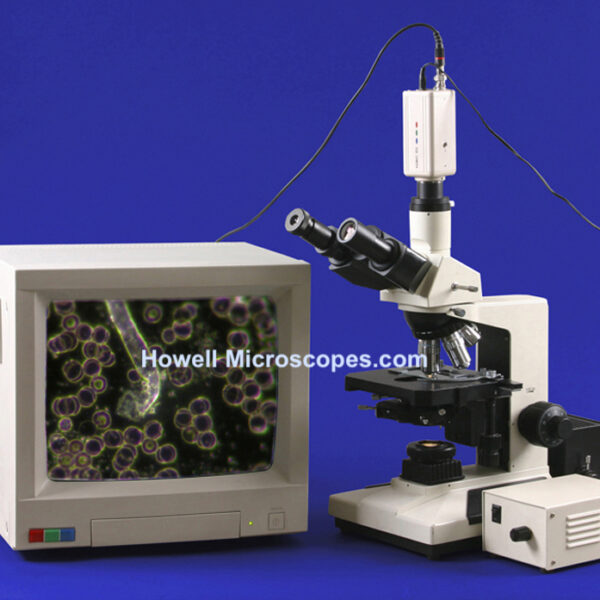

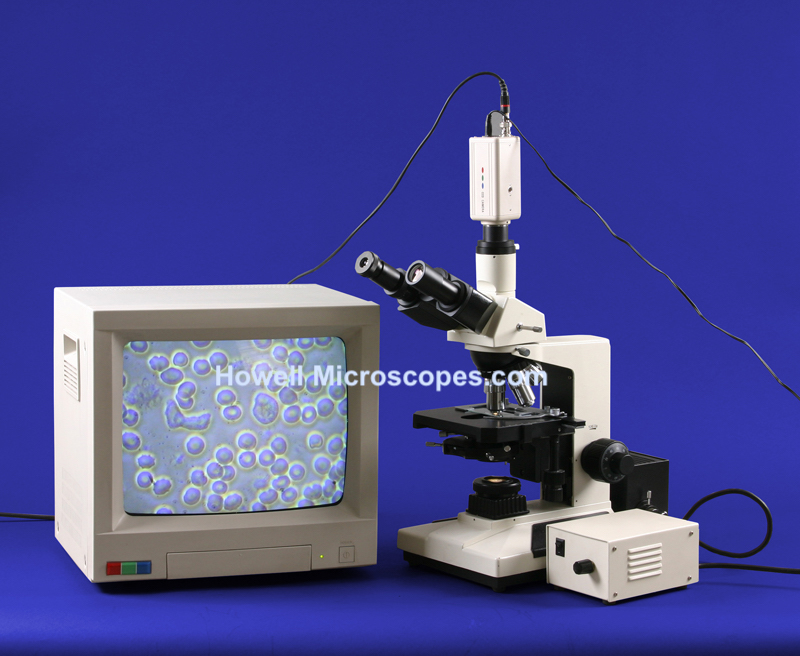

| Video and Photography |
- Image sensor:14-megapixel Panasonic sensor 1/2.3-inch Effective
- Complete Digital Microscopy Solution Included.
- Image resolution: 4320*3240 (for TF card) 1920*1080 @ 30FPS(for TF card)
- Video format: MOV(for TF card)
- Video recorder: 1920*1080 @ 30FPS (for TF Card)

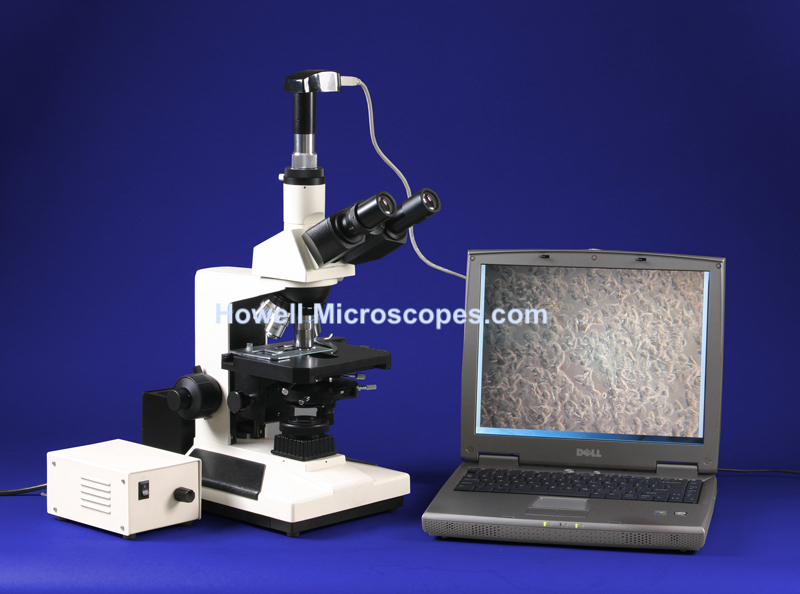

- USB Video resolution : 1920*1080 @ 30FPS
- Video format: MP4, AVI
- HDMI interface: Standard HDMI output (Type A)
- Brightness control: Auto/manual
- Support multi-color, 4 pcs of transverse lines/vertical lines, moveable Different color,4 horizontal lines, 4
- Includes measuring capability with the software.
|
|
| Styro Case |
- Includes a Styro Case with Precut Foam for safe transportation of your precision instrument.
|
|
| Eyepieces and Magnification |
- Brightfield and Darkfield Magnifications Through Eyepieces: 40x, 100x, 200x, 400x, 500x, and 1000x.
- Phase Contrast Magnifications through Eyepieces: 100x, 200x, 400x, and 1000x.
- Eyepiece Set Included: Wide Field 10x.
- Five PLAN DIN Brightfield Objectives: 4x, 10x, 20x, 40x, 50x (Oil), 100x (Oil Immersion). The 50x and 100x are used for darkfield analysis and brightfield. They have a special darkfield iris.
- Four Plan DIN Phase Contrast Objectives: 10x, 20x, 40x, 100x (Oil Immersion).
- All objectives are Plan versions for higher quality and flat field of view without distortion.
|
|
| Illumination |
- Darkfield Illumination: High Power 350W Xenon variable intensity external fiber optic illumination system.
- Brightfield and Phase Contrast Illumination: High Power 50W Halogen Variable Intensity Transmitted Light in External Housing.
- Includes Koehler Illumination Focusable Field Diaphragm for Brightfield and Phase Contrast Microscopy.
|
|

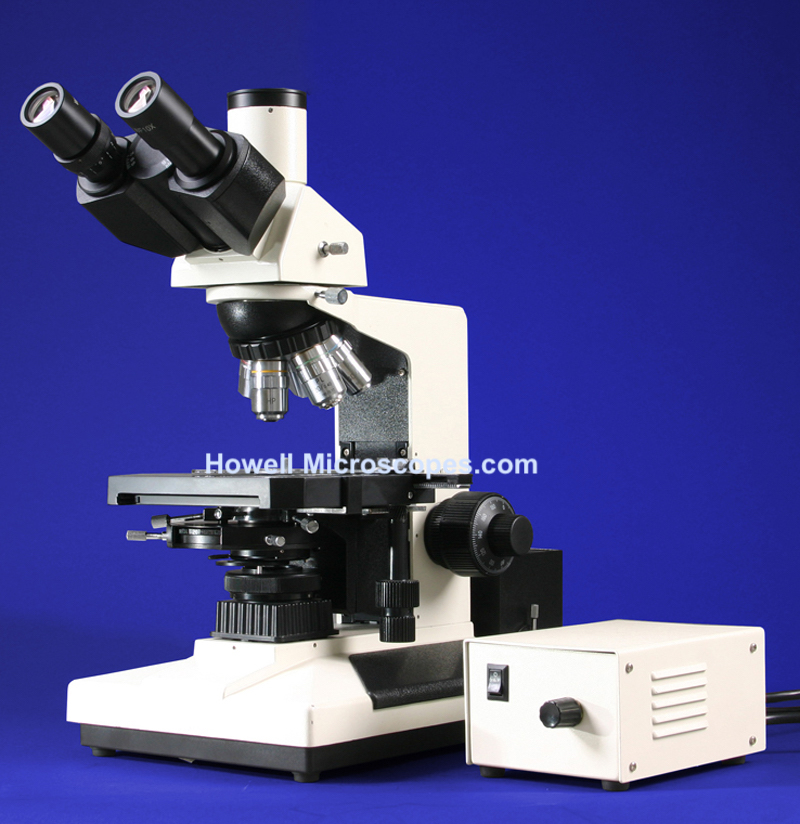

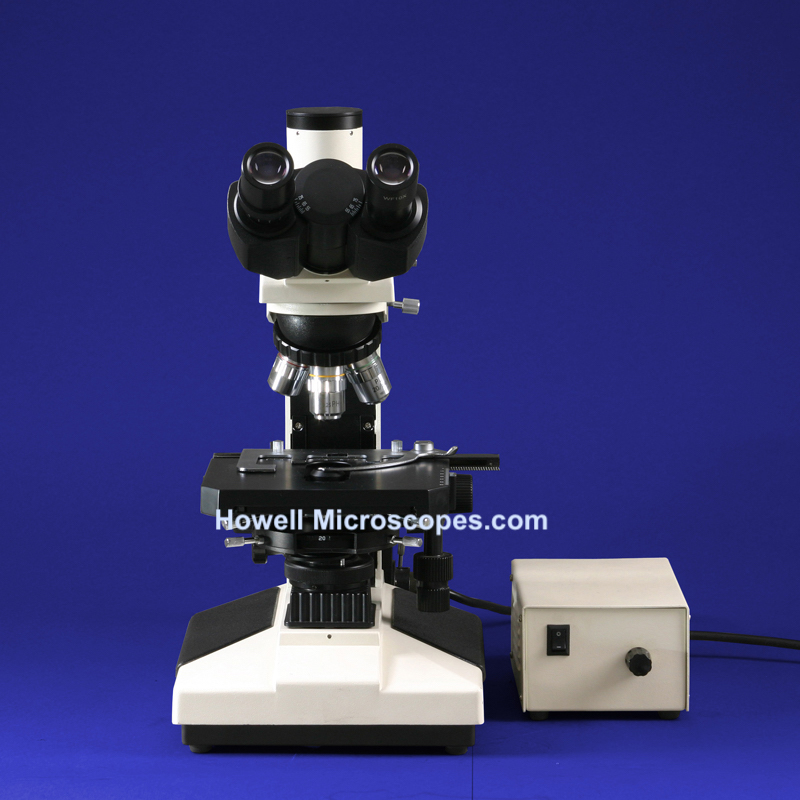

| Microscope Head Details |
- 30 Degree Inclined Trinocular Head (Easier to View than 45 Deg.) Rotatable 360 Degrees.
- Adjusts to the Distance Between your Eyes: 55 to 75mm InterPupillary Distance.
- Diopter Adjustment to Correct for Your Specific Vision Needs.
|
|
| Condenser – Iris – Filters |
- Dedicated Darkfield Oil Condenser Included (N.A. 1.36 – 1.25), with centering knobs.
- Brightfield microscopy condenser Included (1.25 N.A. Abbe Substage, Iris Diaphragm and Swing-Out Filter Holder).
- Brightfield microscopy filters: Blue and Frosted White.
- Phase Turret Condenser with Phase Annulus Rings. Centering Knobs for each ring. Includes Phase Telescope for Viewing Alignment of Phase Annulus Rings.
- Rack and Pinion Condenser Movement System and Condenser Alignment Screws.
|
|
| Stage Specifications |
- Large Graduated Mechanical Movable (up/down and longitudinal Y-direction) Stage: 140 x 160mm..
- Low Position Coaxial X-Y Slide/Stage Movement Knobs – Range of Movement: 75mm (X-Direction – Slide Movement) x 48mm (Y-Direction – Stage Movement).
- Stage moves Forward/Backward, which is a better feature than a simple slide mover as most scopes have.
|
|
| Focusing |
- Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
- Coarse Adjustment Travel Range: 30mm. (Stage Movement Distance Up/Down).
- Fine Adjustment Division: 0.002mm.
- Coarse Focusing Tension Adjustment and Range Limit Adjustment Knobs.
|
|
| Frame – Base – Size – Weight |
- Total Overall Height of Microscope: 401mm
- Microscope Weight: 18 lbs. Weight of external fiber optic illuminator 12 Lbs. The fiber optic illuminator ships in separate box from the microscope system.
|
|
| Included Items |
- Includes dust cover, immersion oil, and fuse.
- Includes phototube (standard 23mm ID) for attaching various microphotography equipment.
- Includes rubber eyeguards for blocking out stray ambient light from the room when doing darkfield microscopy.
|
|
| Other Specifications |
- Manufactured under ISO: 9001 Standards.
- 220 VAC Power Requirement (Contact us about 220V availability).
- High Quality Solid Construction!
- Precision Made Glass Optics!
- Brand New, Never Used!
|
|
| Manufacturer’s Warranty |
- Warranty is 1 years on all microscope equipment.
- The microscope warranty covers problems arising from normal usage.
- We will repair or replace your defective microscopy equipment as needed during the warranty period.
|
|
| Optional Accessories |
- Optional special black and white darkfield camera with ultra light sensitivity. Single USB camera takes high resolution digital still images and does full motion live video on computer screen.
|
