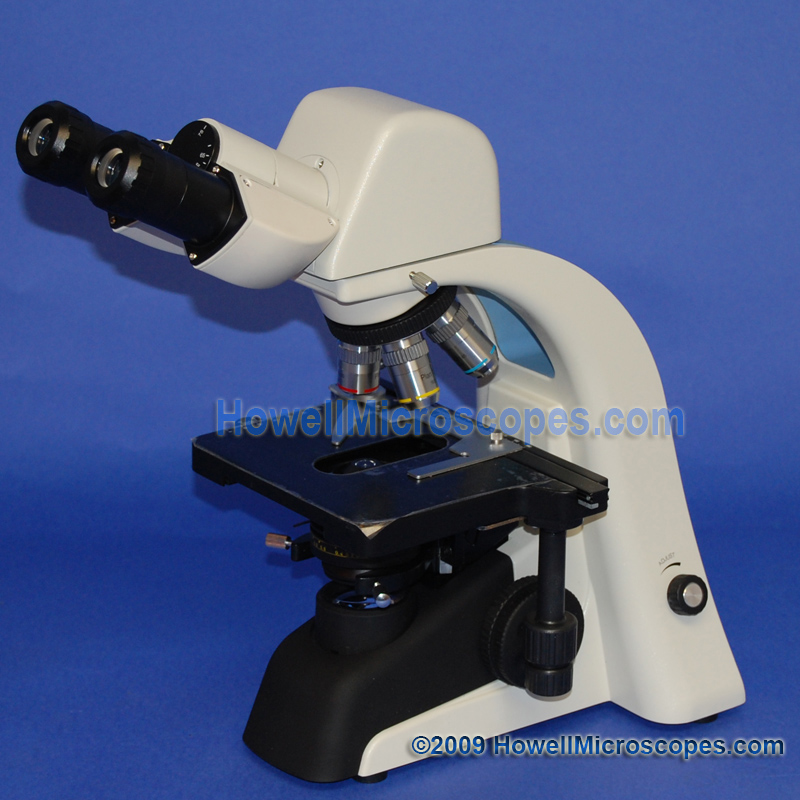

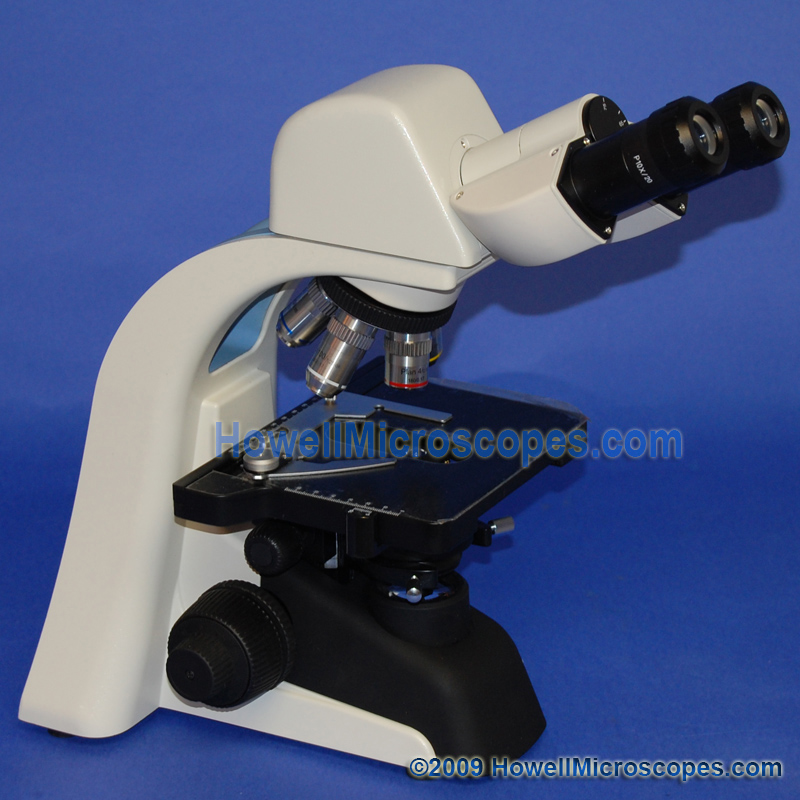

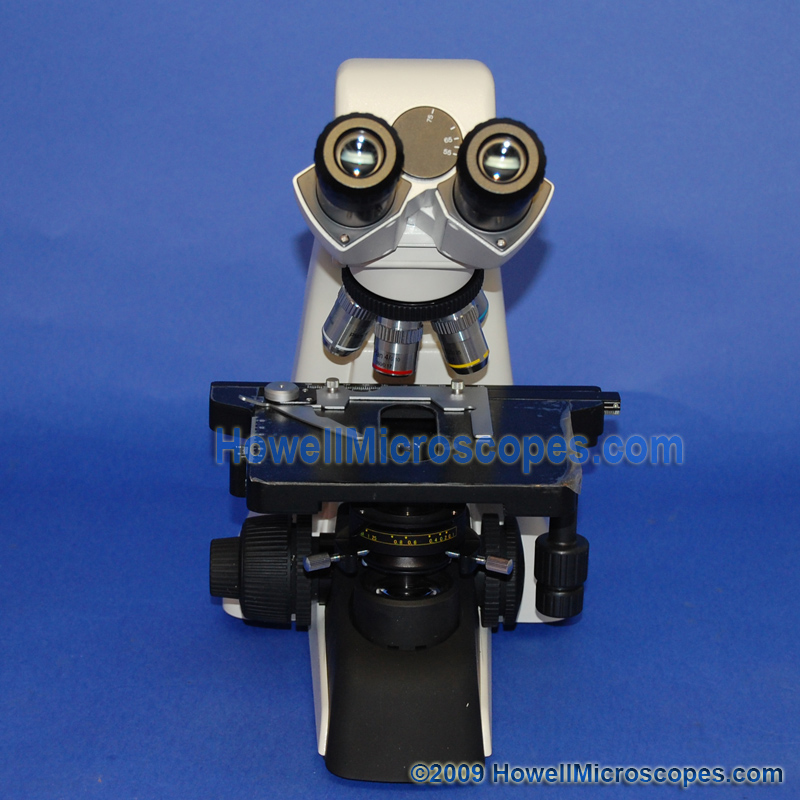

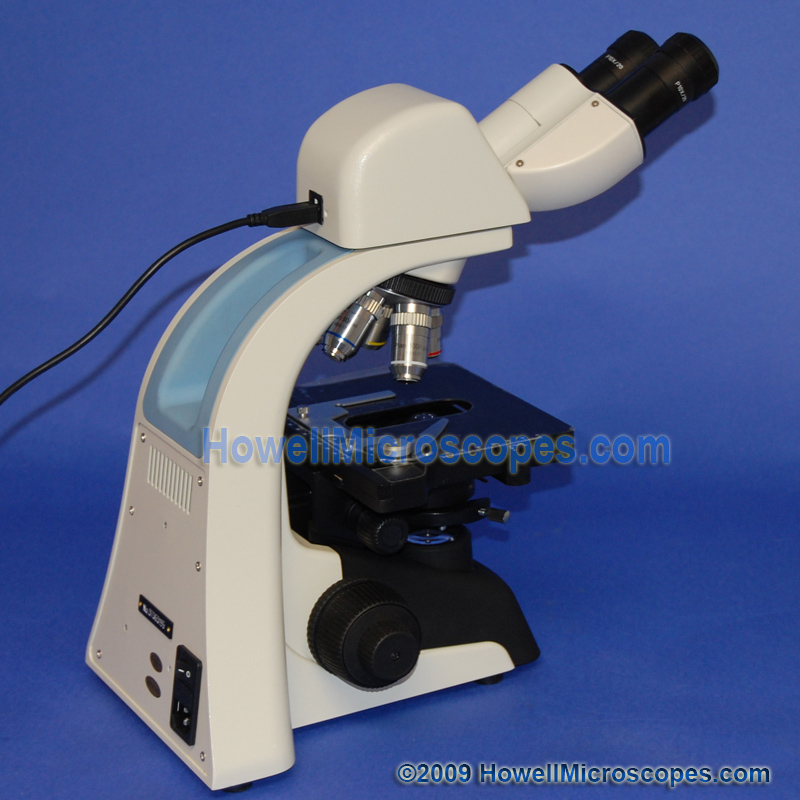

Digital Binocular Compound Microscope 40x – 1600x -Built in 5 Mega Pixel USB camera.
0094000m-m_40094000m-m_20094000m-m_30094000m-c_40094000m-c_35 Mega Pixel Digital USB Camera.0094000m-c_1

Digital Binocular Compound Microscope 40x – 1600x -Built in 5 Mega Pixel USB camera.


Microscope Product Overview:

  • Biological Digital Microscope, equipped with high quality optical system, provides excellent optical performance. Because of the streamline figure and pastel color, it has more beautiful appearance. It achieves the notion of ergonomics design, so it can provide the more comfortable operation and operational room. It can be used in the field of the biology, medicine, industry, agriculture, also as ideal tools in hospital, teaching and academy field.
  • Plan Achromatic Optical System
  • Digital Binocular Head gene-style, Inclined 30 degree
  • Interpapillary distance:55-75mm CMOS Camera.
  • Both Eyepiece Tube Diopter Adjustable
  • Wide Field Eyepiece WF10X/F.N.30mm Par- Pocal Distance:10mm
  • High Contrast Chromatic-free Plan Achromatic Objectives
  • Large Size Double Layer Mechanical Stage 120mmx115 mm , 50mmx35mm Graphite Surface, Moving
  • Range75mmx55mm

2 in stock

SKU: HM0094000A Categories: ,

Product Description

Microscopes Product Features:

Total Magnification 40x-1000X (Standard assemble)

40x-16000X (Selective assemble)

Head Digital viewing head, gnel-syle binocular head Inclined 30 degree.

Interpapillary distance: 55-75mm

5 Mega Pixel Camera Integrated

Eyepiece Wide field eyepiece : F10x/18mm – diopter adjustable
Wide field eyepiece : F16x/15mm – diopter adjustable

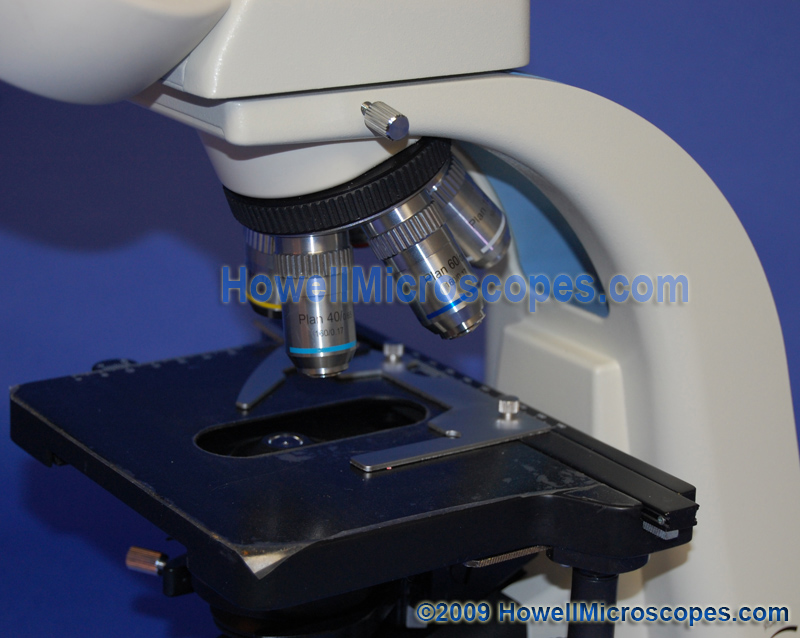

Objective Plan Achromatic  Anti-molds-free 4X,10X,40X,100
Condenser Abbe Condenser NA1.25 Iris Diaphragm
Stand Focusing System Coaxial Coarse and Fine Adjustment

System: 22mm, Minimal sliding stage

Graduation: 0.004mm

Condenser Abbe type, N.A=1.25 With Iris Diaphragm and hand wheel stand
Lamp House LED 1W, brightness adjustable

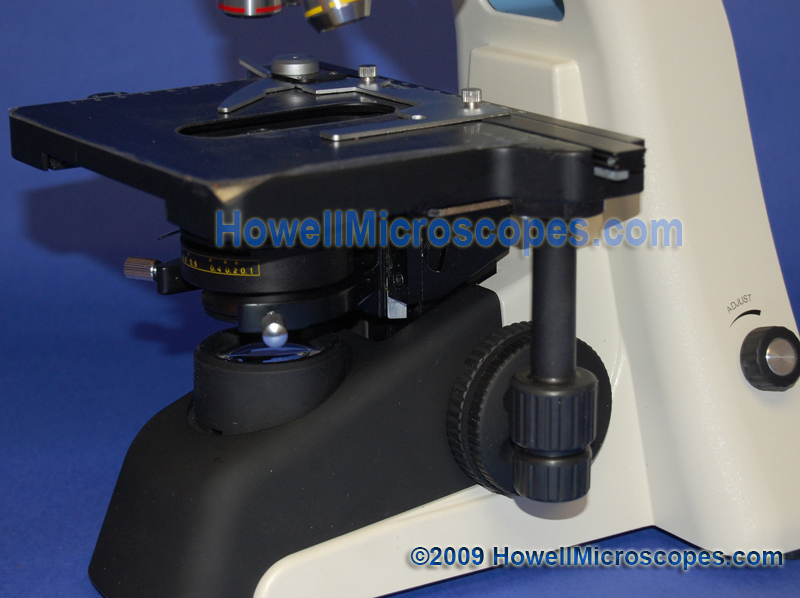

Working Stage Large Size Double Layer Mechanical Stage 140x132mm , Moving Rang 50mmx30mmx

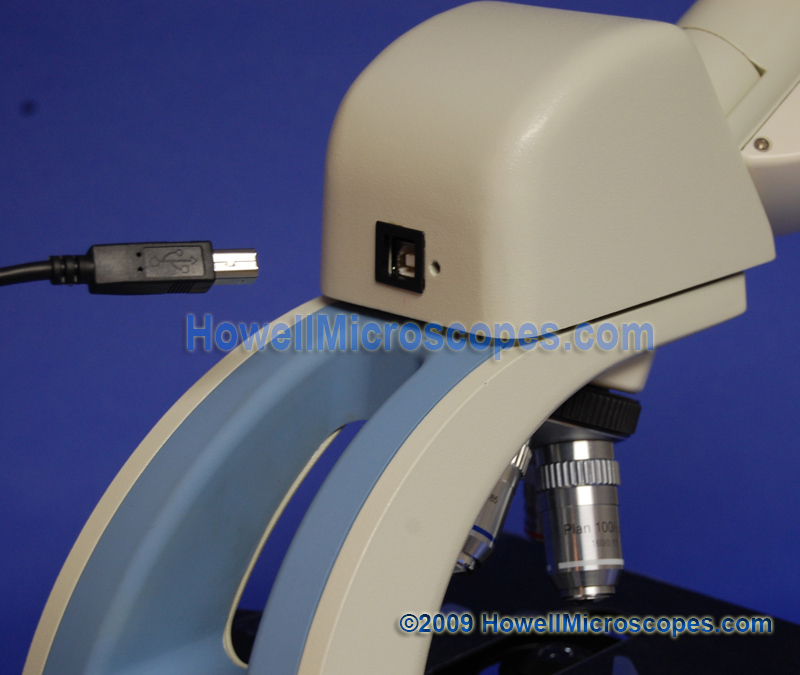

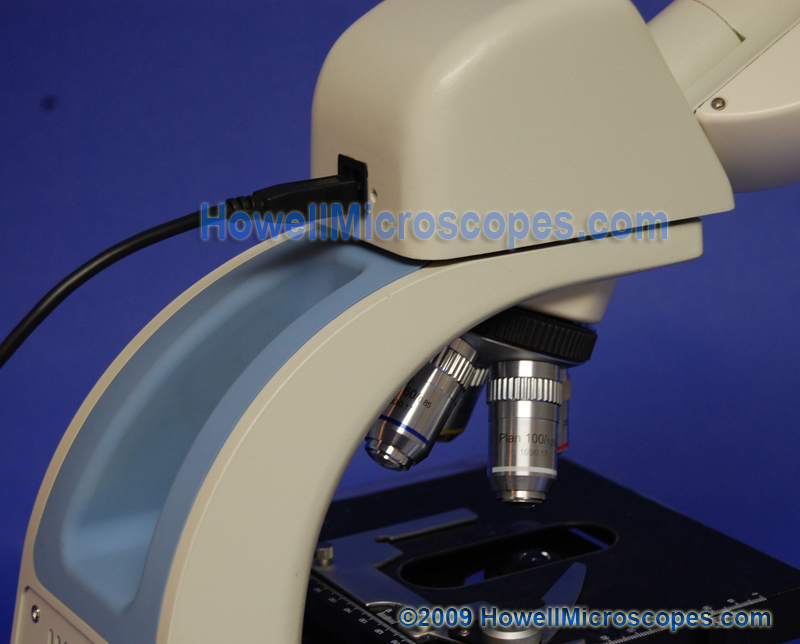

Camera CMOS 5 Mega Pixels, USB Port.

Micro Image Processing and Analyzing Software


Included Items

* Aluminum Carrying Case

* Dividing Ruler : 0.01mm.

* 1 sample plant prepared slides

* Includes: Instruction Manual, Dust Cover

Additional Information

* Manufactured under ISO: 9001 Standards.

* Protective Molded Styrofoam Container.

* Precision Ground Glass Lens.

* Quality Construction, Metal Frame.

* 220 VAC

* 100% Brand New!

1 Year Manufacturer’s Warranty
  • The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
  • If your system needs repair, simply let us know and we will see that it is back in service ASAP.
