Product Description

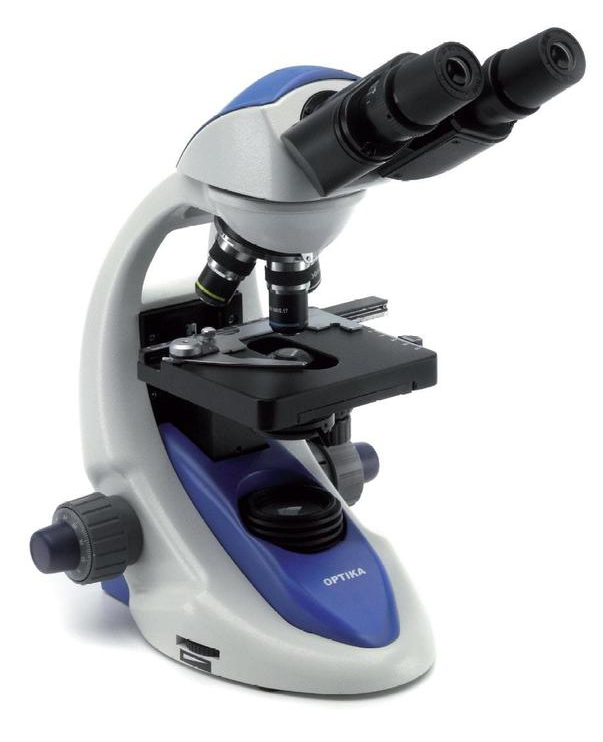

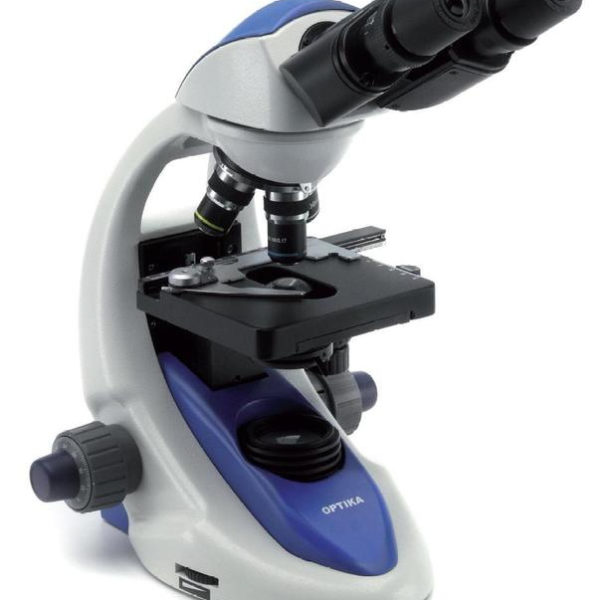

| Specifications: | |
| Head | Binocular 360° rotating and 30° inclined |
| Eyepieces | WF 10x/18 |
| Nose piece | Quadruple revolving nose piece, rotation on ball bearings |
| Objectives | N-PLAN 4x, 10x, 100x (oil) |
| Stage: | Double layer mechanical sliding stage, 125 x 115mm, 70 x 30mm X-Y movement range vernier scale on the two axes, accuracy: 0.1mm |
| Focusing | Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob |
| Condenser | N. A 1.25 pre-centered, adjustable height with iris diaphragm |
| Illumination | X-LED² with white 3 W LED and light intensity control. Color temperature: 6,300 K |
