Product Description
| Specifications: | |
| Measuring Range (XYZ): | 300x200x200xmm |
| Resolution of Scale/Scale Type: | 0.1µm/Linear Encoder |
| Accuracy (µm): | E1x E1y= (1.5+3.0L/1000µm
E1z= (1.5+4.0L/1000)µm |
| Maximum stage loading: | 20kg |

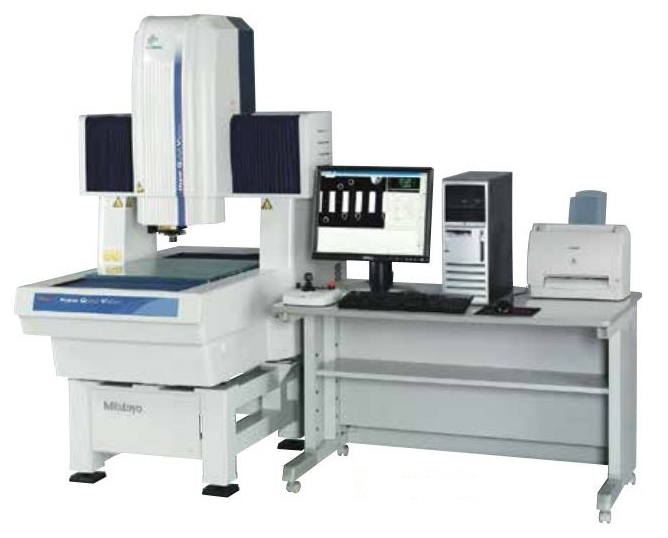

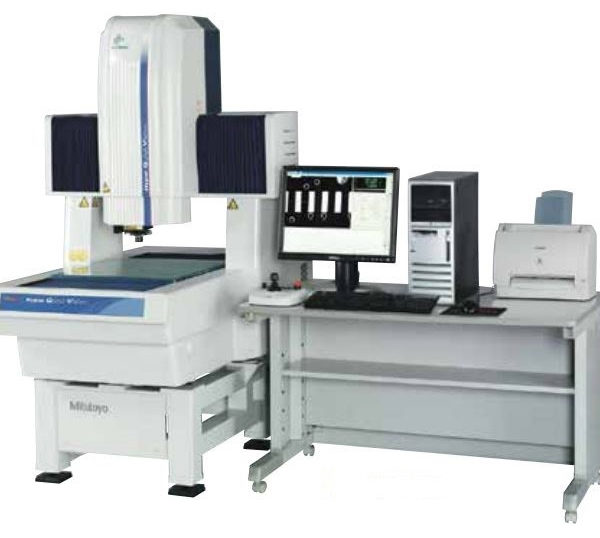

MITUTOYO- QV APEX 302 PRO- MITUTOYO QUICK VISION VIDEO MEASURING MACHINE
- The model equipped with the tracking focus function that allows continuous focusing in response to change in work piece height is also available, achieving improvement in measurement through put.
- This model can support ISO 10360-7:2011 guaranteed accuracy (specifications on request).
PLEASE CALL OR EMAIL FOR PRICING
