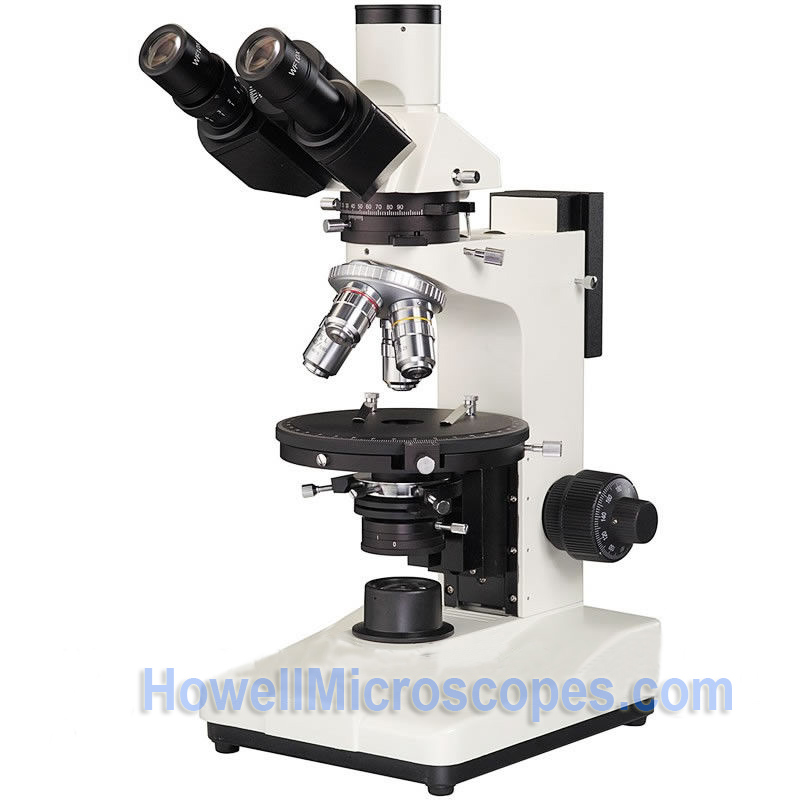

Transmitted and Reflected illumination Polarizing Microscope

Transmitted and Reflected illumination Polarizing Microscope

 170,000.00  155,000.00

Microscope Product Overview:

Model: hm0091000a – transmitted and reflected polarization microscopes are utilized polarize light to observe and research the matter which have double refraction features, the user can make single polarizing observation, orthoscopic observation, conescopic observation.

They are applied in geology, chemicals, physic and leechdom fields. They are also widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. They are the ideal instruments for scientific research and universities teaching demo.

1 in stock

SKU: HM0091000A Category:

Product Description

·  Transmitted, Reflected, transmitted/reflected illumination can be chosen

·     Equipped with strain-free plan objectives (center adjustable) and wide field eyepiece

·     Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm

·     Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6′ center adjustable and with tighten Stage vertical effective movement up to 30mm

·     Wide voltage range power supply (85-265V 47-60HZ), 6V20W halogen lamp, brightness adjustable



Specification
Eyepiece Wide field WF10x/18mm
Division eyepiece 10x/18mm 0.10mm/div
Objective, Center Adjustable



Strain-free plan achromatic objective (cover glass:0.17mm)
PL 4X/0.10
Strain-free plan achromatic objective
(no cover glass) PL 5X/0.12
Strain-free plan achromatic objective (cover glass:0.17mm)
PL 10X/0.25
Strain-free plan achromatic objective
(no cover glass) PL L 10X/0.25
Strain-free plan achromatic objective (cover glass:0.17mm)
PL 40X/0.65 (spring)
Strain-free plan achromatic objective
(no cover glass) PL L40X/0.60 (spring)
Strain-free plan achromatic objective (cover glass:0.17mm)
PL 60X/0.85 (spring)
Strain-free plan achromatic objective
(no cover glass) PL L 60X/0.75 (spring)
Reflected Illumination Rotatable Polarizer
6V 20w, halogen lamp, adjustable brightness
Transmitted Illumination Polarizer 360° rotatable, have 0,90,180,270 four scale
Collector for halogen lamp illumination
Illumination 6V 20w, halogen lamp, adjustable brightness
Abbe condenser N.A. 1.25, rack & pinion adjustable
Eyepiece Tube Trinocular head, inclination of 30°,can send 100% of the image light to top photography port
Polarizing Attachment Built-in analyzer, can switch to normal observe or polarizing observe freely, 90° rotatable with scale, minimum retardation resolution 12′
Bertrand lens, impellent style, center adjustable
λ compensator
λ/4 compensator
Quarts wedge compensator
Nosepiece Quadruple (Frontward ball bearing inner locating)
Focus System Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 0.002mm
Stage Rotatable stage, Diameter Φ150mm, 360° graduated (in 1degree increments), minimum retardation resolution 6′ center adjustable and with tightened

Additional Information

* Manufactured under ISO: 9001 Standards.

* Protective Molded Styrofoam Container.

* Precision Ground Glass Lens.

* Quality Construction, Metal Frame.

* 220 VAC

* 100% Brand New!

1 Year Manufacturer’s Warranty
  • The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
