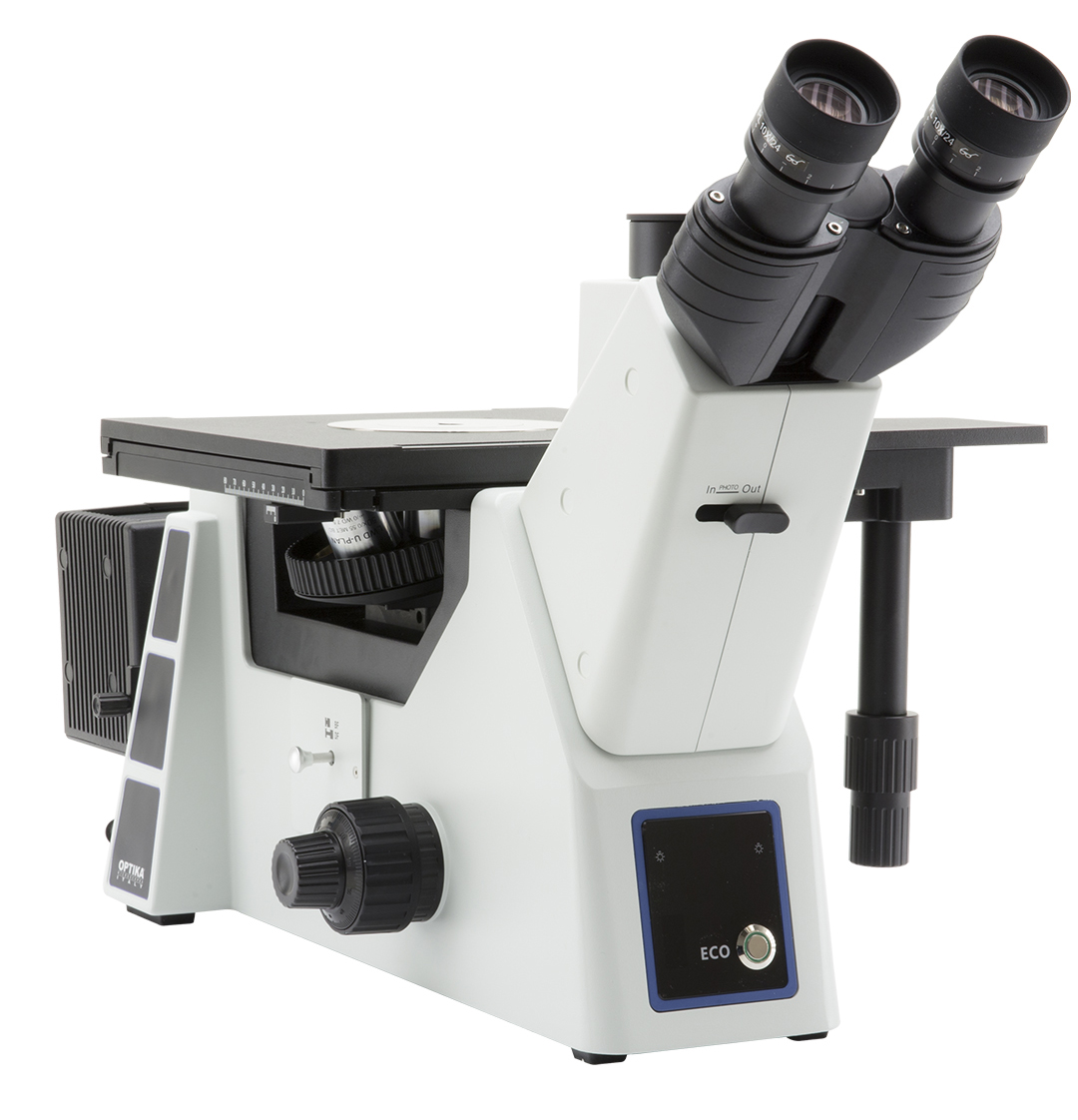

OPTIKA- IM-5 Material Science (MET) Inverted Research Microscope For Metallography

IM-5MET is a new inverted research microscope for metallography providing a high-end solution in the field of material science. Brightfield, darkfield, polarized light and DIC – Nomarski technique all-in-one for an extremely valuable instrument able to provide ergonomic handy controls and significant unique features, such as the highest F.O.V. Available on an inverted microscope.
Brightfield, darkfield, polarized light and DIC – Nomarski technique all-in-one for an extremely valuable instrument able to provide ergonomic handy controls and significant unique features, such as the highest F.O.V available on an inverted microscope ( F.N. 24 mm)

PLEASE CALL OR EMAIL FOR PRICING

Product Description

Specifications:
Observation Methods	Brightfield, darkfield, polarized light (DIC- Nomarski as optional)
Head	Trinocular, 45° Inclined, splitting ratios eyepieces/ photo tube: 100% – 0% / 0% – 100%
Eyepieces	Plan Extra Wide Field, PL 10×24 (Ǿ 30mm), high point, with dioptric adjustment
Nosepiece	Quintuple, reversed with M25 thread holes and adapter rings (for RMS objectives ) slot for DIC
Objectives	M-880, Plan extra Wide field , PL 10x/24 (Ǿ30mm) high eyepoint, diotric adjustment
Stage	Rackless, Mechanical, 240 x 250 mm, 50 x 50 mm movement tension
Focusing	Coaxial coarse & fine (200µ m/turn) upper stop, adjustable tension
Incident Illumination	100W Halogen, manual brightness control
Incident Light Diaphragms	Aperture and field diaphragm, both centrable
Accessories Included	Polarizer and rotating analyzer filters, slider with blue LBD Filter
