| Special Features |

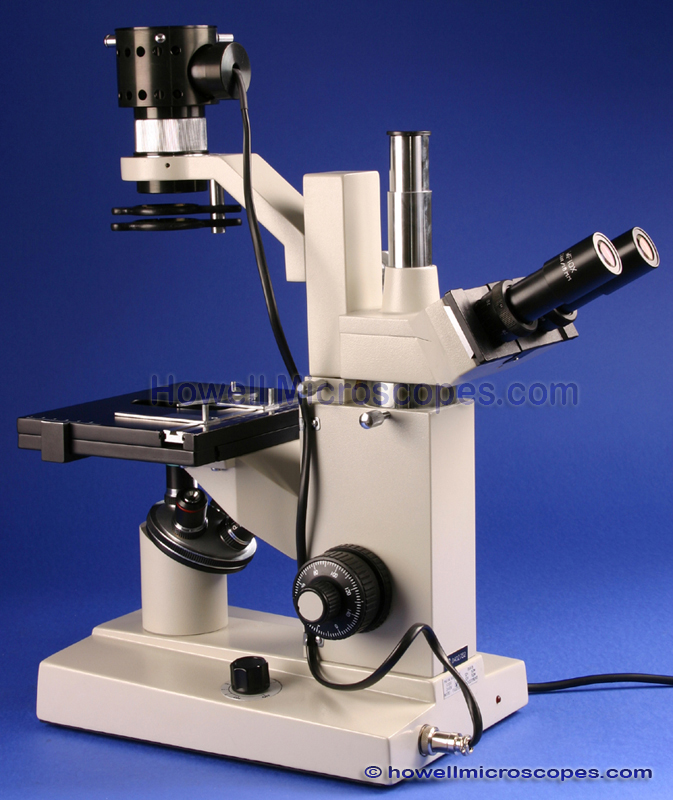

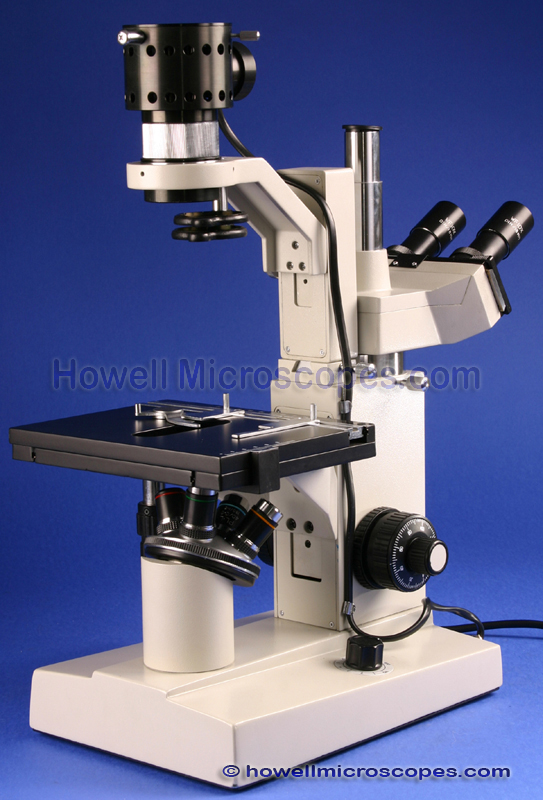

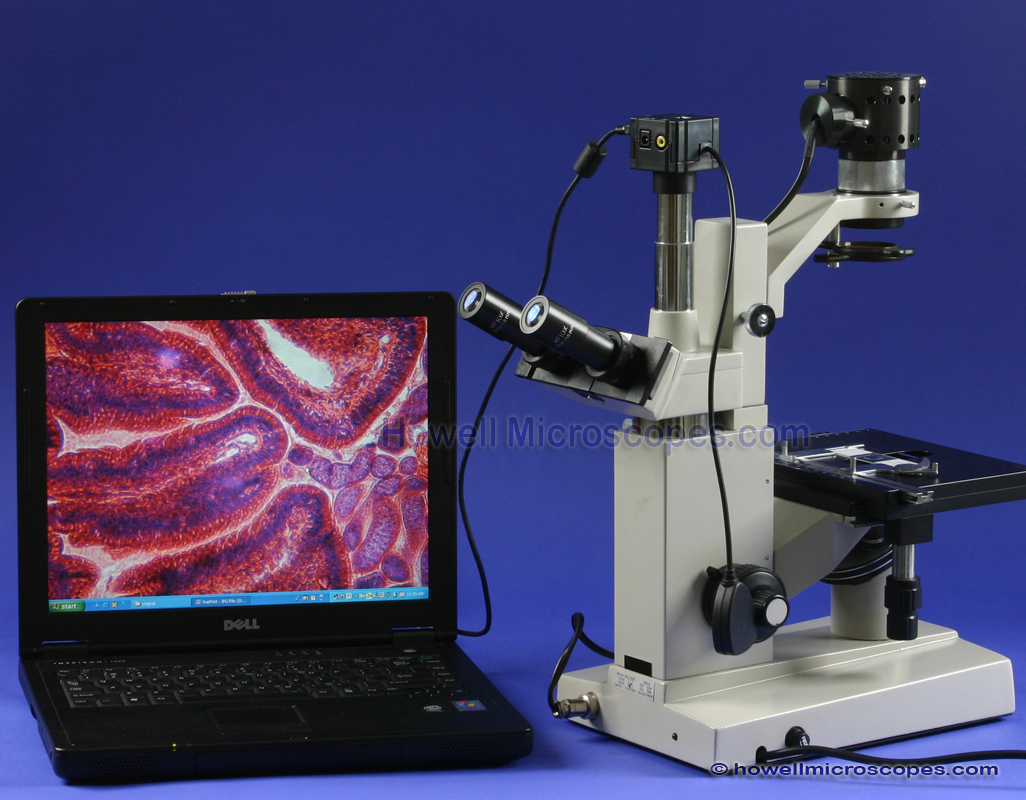

- Large open stage with easy access. This design is often preferred because the stage is more open and specimen more accessible than on comparable inverted tissue culture microcope.
|
|
| Video and Photography |
- High Resolution 14 Mega Pixel High Resolution HDMI Camera
- Complete Digital Microscopy Solution Included.
- Image resolution: 4320*3240 (for TF card) 1920*1080 @ 30FPS(for TF card)
- Video format: MOV(for TF card)
- Video recorder: 1920*1080 @ 30FPS (for TF Card)
- USB Video resolution : 1920*1080 @ 30FPS
- Camera with HMDI USB 2.0 two output
- Image Format: jpg
- White Balance : Auto
- Light Auto
- Color: Color
- Mirror: Left/right, Up/Down Freeze: Support
- OSD: English/Chinese/French/Spanish/Portuguese
- Line: different color,4 horizontal line , 4 vertical lines, any positions

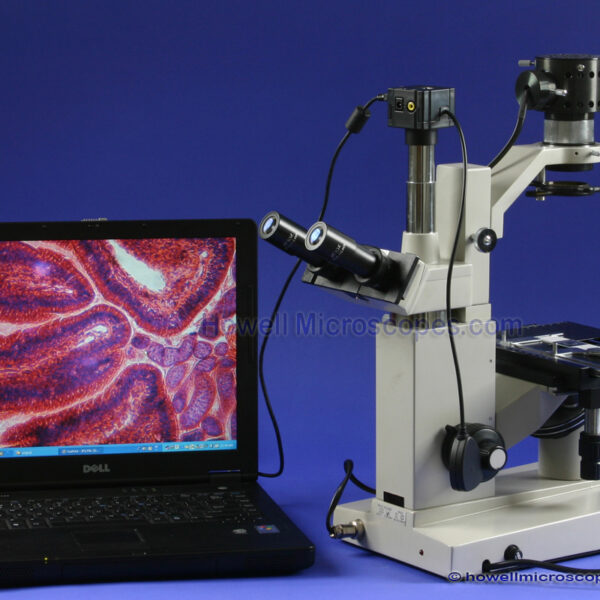

- HDMI Monitor and Computer connected digital microscope camera connects via USB2.0. Includes USB cable and MS Windows software.
- Color DSP built into camera provides sharp quality color images. Image sensor size is half inch.
- Includes measuring capability with the software.
|
|
| Styrofoam |
- Includes a Styro Case with Precut Foam for safe transportation of your precision instrument.
|
|
| Eyepieces and Magnification |
- Seven Magnifications: 40x, 64x, 100x, 160x, 250x, 400x, 640x.
- Two Eyepiece Sets Included: Wide Field 10x / Wide Field 16x.

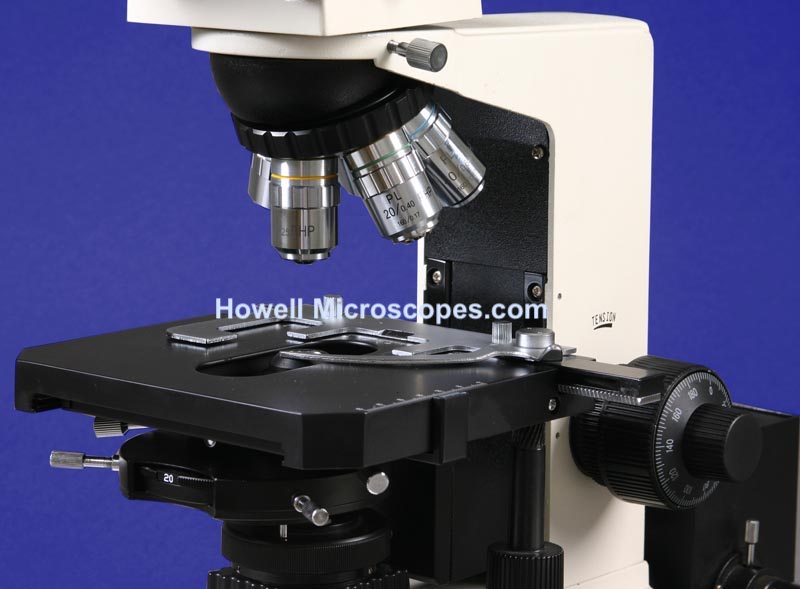

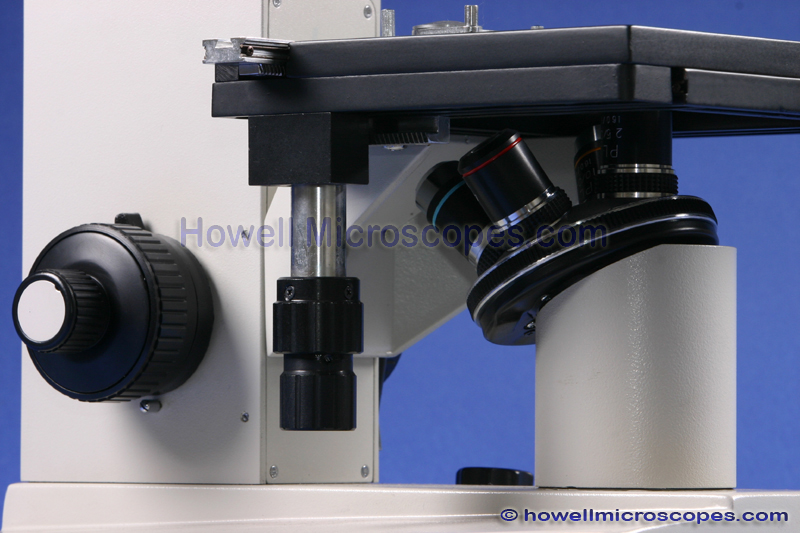

- Four DIN Plan Long Working Distance Objectives: 4x, 10x, 25x, 40x.
- These PLAN Objectives are Superior Quality and the Most Expensive. The Achromatic and Semi-Plan as Found on Other Scopes are the Cheaper Quality.
|
|
| Illumination |
- Halogen Variable Intensity 50W Transmitted Light in Upper Housing. This provides a high intensity illumination for better optical imaging of cell cultures.
|
|
| Head – Interpupillary Distance – Diopter |

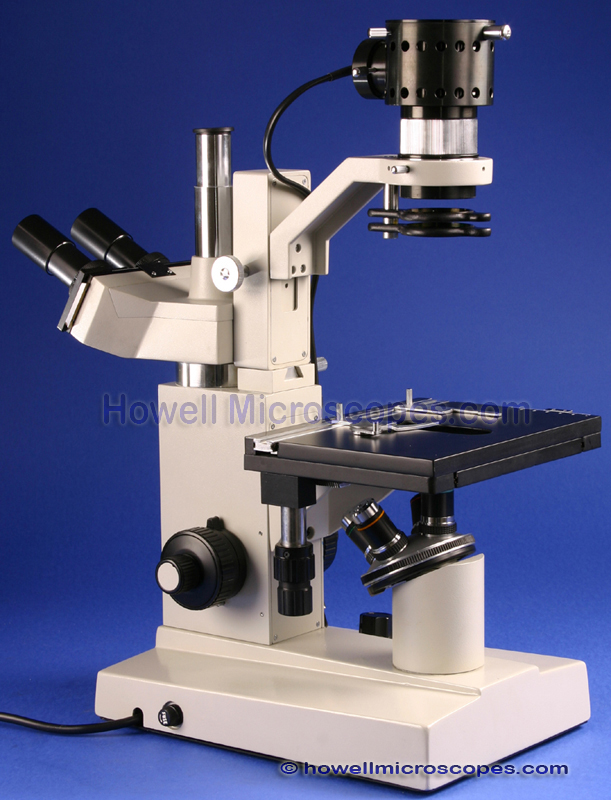

- 45 Degree Inclined Trinocular Head.
- Adjusts to the Distance Between your Eyes: 55 to 75mm InterPupillary Distance.
- Diopter Adjustment on Both Oculars to Correct for Your Specific Vision Needs.
|
|
| Condenser – Iris – Filters |

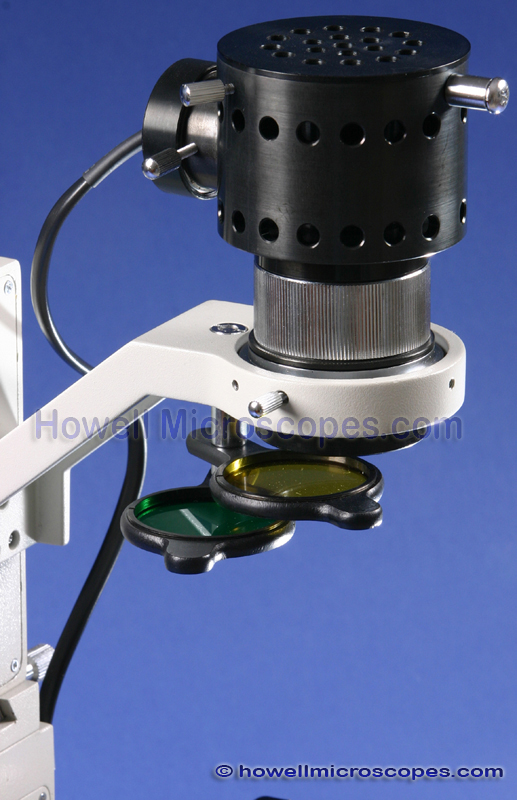

- Above-Stage Long Working Distance Condenser, with Iris Diaphragm and Swing-Out Filters.
- Condenser Centering Knobs for Precise Positioning of Condenser Over Objective.
- Filters Included: Green and Yellow.
- Rack and Pinion Steel Gears with Knob to Easily Move Condenser Up and Down Relative to Stage.
|
|
| Stage Specifications |

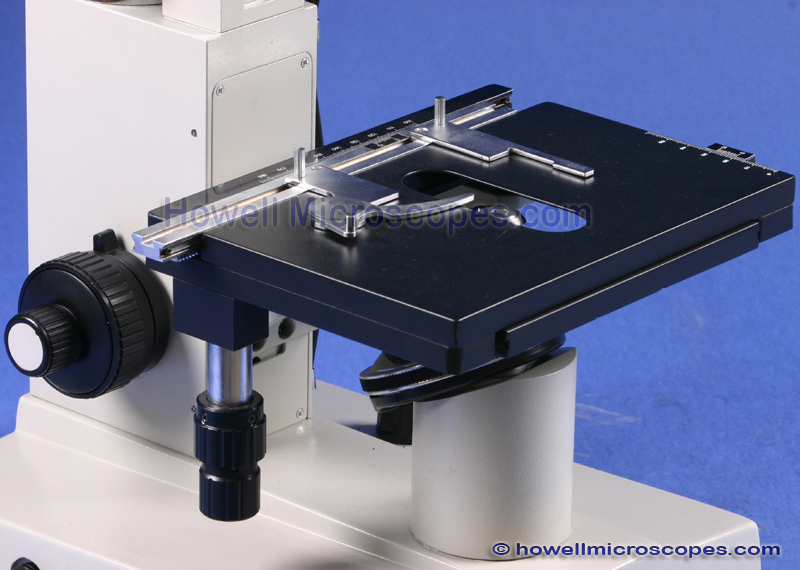

- Large Mechanical Stage with X-Y Movement Knobs. Stage Size 190 x 145mm.
- Low Position Coaxial X-Y Movement Knobs – Range of Movement: 75mm (X-Direction Specimen Movement) x 50mm (Y-Direction Stage Movement).
|
|
| Focusing |
- Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
- Coarse Adjustment Travel Range: 28mm (Stage Movement Distance Up/Down).
- When Focusing, the Stage moves Up/Down Instead of the Objectives.
- Adjustable Lock Ring Stop to Limit Coarse Range to Protect Objectives and Specimens.
- Tension Adjustable Coarse Focusing.
|
|
| Frame – Base – Size – Weight |
- Total Overall Height of Microscope: 465mm.
- Instrument Weight: 21 lbs.
|
|
| Included Items |
- Includes: Instruction Manual, Dust Cover, Extra 50W Bulb and Fuse.
|
|
| Other Specifications |
- Manufactured under ISO: 9001 Standards.
- 220 VAC Power Requirement (Contact us about 220V availability).
- High Quality Solid Construction!
- Precision Made Glass Optics!
- Brand New, Never Used!
|
|
| Manufacturer’s Warranty |
- Warranty is 1 year on all microscope equipment.
- The microscope warranty covers problems arising from normal usage.
- We will repair or replace your defective microscopy equipment as needed during the warranty period.
|
