Stereoscopic microscope system
A23.1501_L02A23.1501_L03Optional objective
   Auxiliary Objective (0.5x/210mm; 0.7x/130mm; 2x/45mm)

LED 6.5X – 120X HIGH RATIO ZOOM BINOCULAR STEREO MICROSCOPE

 47,000.00

Microscope Product Overview
• Professional Stereo High Ratio Zoom Trinocular Microscope!
• Bright and Clear 3-D Stereoscopic Images!
• Perfect for Studying Plant-Animal-Mineral Specimens. Also Fits Many Industrial Applications!
• Great for Gemologists, Collectors, Engravers, Document Examiners, Students, Schools, Research Labs, QC Stations, and for Circuit Board Inspection and Repair.
• Compare to Similar Units costing $2000+ with name brands!

Out of stock

SKU: HMA23.1501-B2 Category:

Product Description

Special Features
• Well-coated optical system can provide sharp & clear images with extremely flatness and contrast.
• Ergonomic design can make users feel comfortable after long-time operation.
• Standard zoom magnification 8X-50 with zoom ratio 1:6.3.Standard working distance is 115mm. With
additional objectives, it can be increased to 211mm.
• Configured with WF10X/22mm eyepiece. Each eyepiece allows diopter adjustment to suit different users.
• Full set of eyepiece, auxiliary objectives and other accessories can fulfill different needs.

Eyepieces and Magnification
• Excellent High Ratio Zoom Range (Without Changing Eyepieces): 6.5x – 60x Continuous Magnification, With Included 22mm Wide Field 10x Eyepieces.
• Changing to 20x eyepieces gives up to 120x Magnification!

Illumination

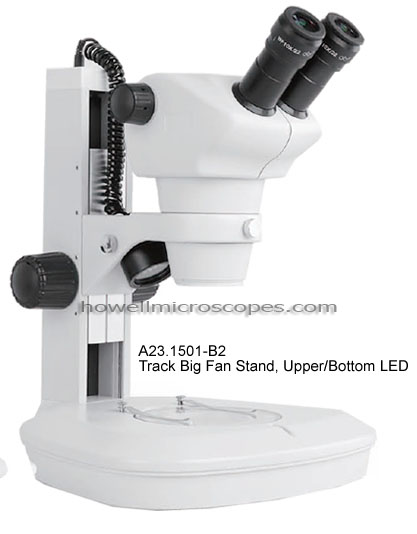

• Independent Variable Intensity Dual LED Upper and Base Illumination:Track Big Fan Stand, Upper/Bottom LED

Head – Interpupillary Distance – Diopter
• Binocular head, 45° inclined, 360° rotatable.
• Interpupillary range from 52mm-75mm.
• Distribution is 3:7 for trinocular

Working Distance

• Standard Working Distance is 115mm. With additional objectives can be up to 45mm-211mm.

Frame – Base – Size – Weight
• Total Overall Height of Microscope: 450mm.
• Instrument Weight: 16 lbs.

Other Specifications
• Manufactured under ISO: 9001 Standards.
• 220 VAC Power Requirement
• High Quality Solid Construction!
• Precision Made Glass Optics!
• Brand New, Never Used!

Manufacturer’s Warranty
• Warranty is 1 years on all microscope equipment.
• The microscope warranty covers problems arising from normal usage.
• We will repair or replace your defective microscopy equipment as needed during the warranty period.

Optional objective

• Auxiliary Objective (0.5x/210mm; 0.7x/130mm; 2x/45mm)

Optional Ring Light
• LED Ring Light
