LX7 Polygraph System 10 data channels with new ECG channel

The LX7 is our next-generation polygraph system that boasts features designed to elevate accuracy, consistency, and usability in the field.

Features

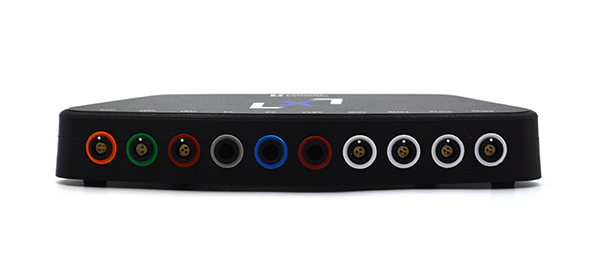

  • 11 data channels including new ECG and Expansion channels
  • Next-generation pulse arrival time (PAT) sensor
  • Streamlined EDA measurement with expanded GSR range results in consistent, high-precision results
  • Upgraded processor delivers increased performance and efficiency
  • New expansion port for future sensor development
  • Curved design improves cable management and organization for a cleaner workspace
  • Superior connectors with extended connection reliability
  • Maintains medical grade isolation for subject safety
  • Supports usage of LX6 accessories
  • Powered by well known LXEdge and LXSoftware
SKU: LX7-S Category:

Description

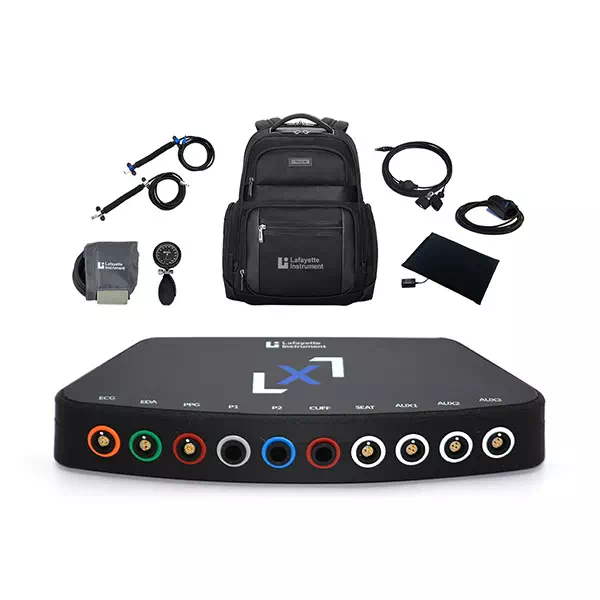

LX7-S System includes

  • LX7 Polygraph Data Acquisition System
  • LXEdge Software
  • LXSoftware Bundle with OSS-3
  • Activity Sensor

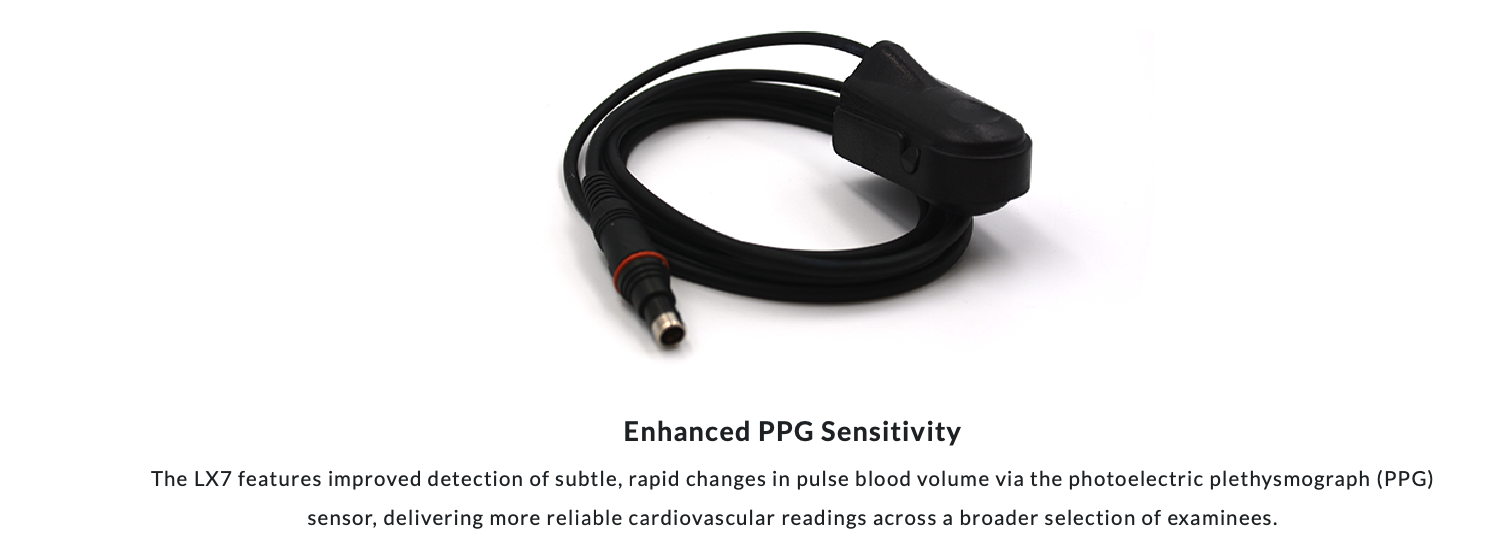

  • Photoelectric Plethysmograph (PPG)
  • Pneumo Chest Assembly, Silver
  • Pneumo Chest Assembly, Blue
  • Repositionable/Disposable with 2 Reusable Snap EDA Electrodes
  • Blood Pressure Cuff and Pump Bulb
  • DAS Storage Pouch
  • Targus Backpack

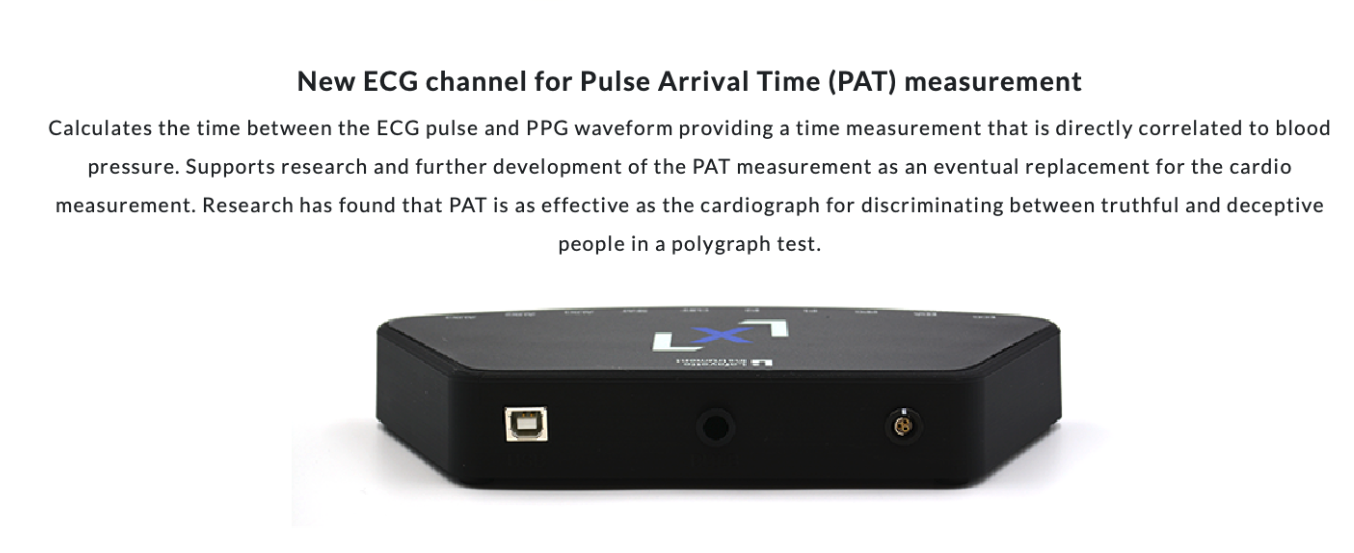

New ECG channel for Pulse Arrival Time (PAT) measurement

Calculates the time between the ECG pulse and PPG waveform providing a time measurement that is directly correlated to blood pressure. Supports research and further development of the PAT measurement as an eventual replacement for the cardio measurement. Research has found that PAT is as effective as the cardiograph for discriminating between truthful and deceptive people in a polygraph test.
