Description

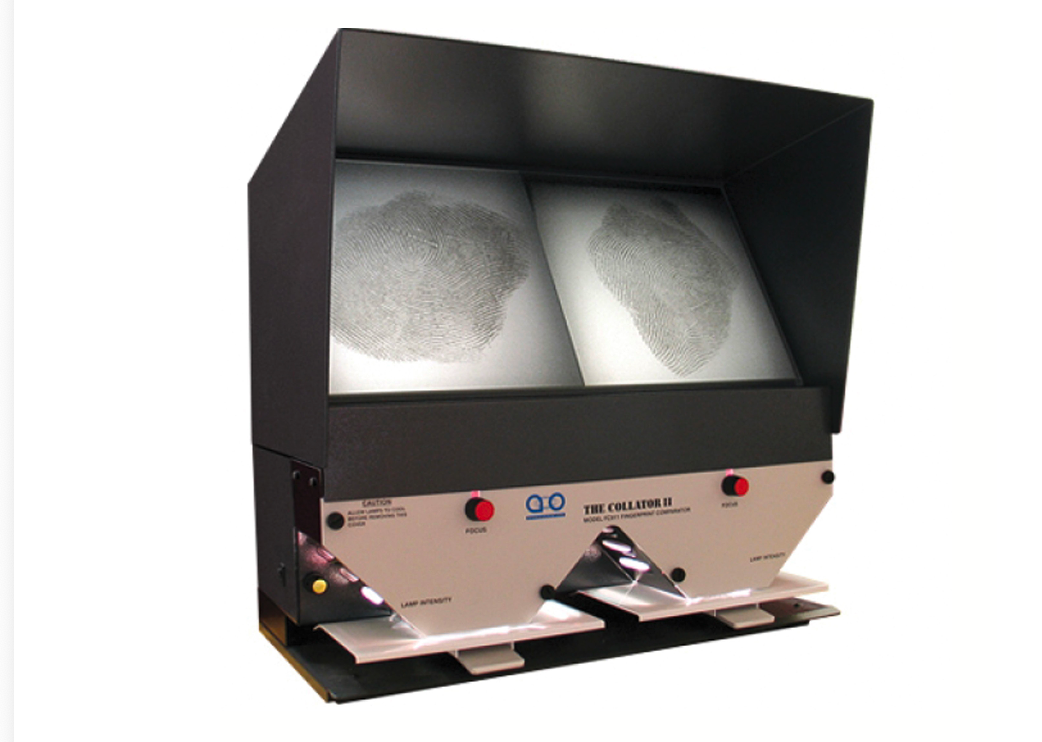

SPECIFICATION FOR THE COLLATOR II
- Dual lens optical system with individual focus and brightness control for each side.
- Matt screen for the highlighting of recognition points with markers.
- Magnification: 6.75X
- Light source: 2 x 75 watt halogen lamps each side with heat filters to protect the examination area
- Controls: Each side individually switched and with individual lamp intensity controls
- Screen size 275 x 275 each side with no image overlap
- Cooling: Low noise fans each side
- Document size: Size: A4 x 12mm height
- Power: 240, 230 or 115 volts a.c. 350 watts max.
- Power inlet: Fused IEC type C14
- Size: 560(w) x 300(d) x 563(h)
- Weight: 23kg
