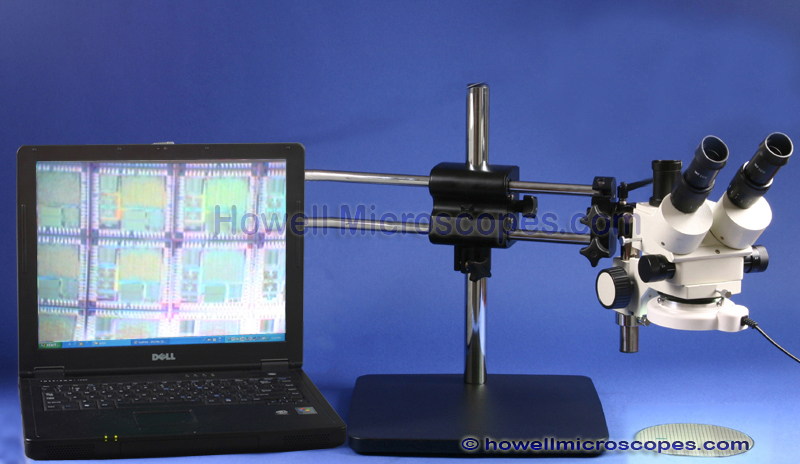

Camera/Laptop NOT Included. Digital Camera - PC Connectivity. This system is capable of this type of connection.
003tb20m-c_1003tb20m-c_2003tb20m-m_1003tb20m-m_2

Sale! 7X – 45X ZOOM MAGNIFICATION STEREOSCOPIC TRINOCULAR DUAL ARM BOOM STAND MOUNTED MICROSCOPE

₱ 89,000.00 ₱ 55,000.00

Trinocular Photography Port
  • Photograph Your Own Specimens!
  • Have Your Own Complete Digital Video Microscopy System!
  • Capture Images With Your Computer!
  • Display Images on a High Resolution CCTV Monitor or Television!
  • Videotape What You See Under the Microscope!
  • Versatility – Included Trinocular Port Greatly Expands the Usefulness adding Photographic/Video Capability!
  • Other (not included) accessories may be required for connecting digital/film cameras, CCD cameras and Video cameras. Call or Email us your specific requirements.

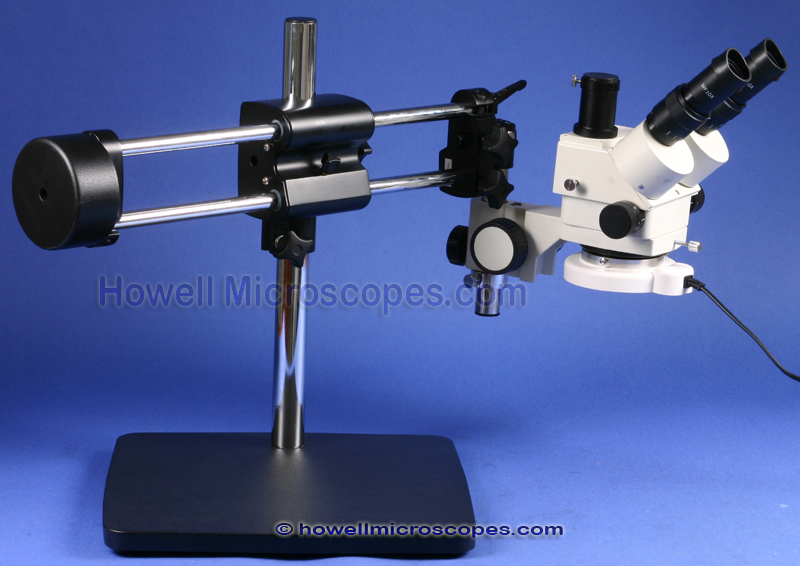

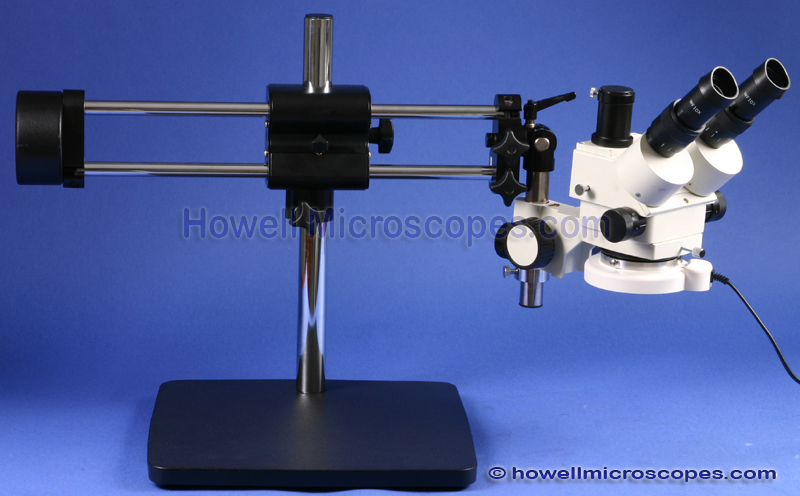

Boom Stand Specifications
  • Extra Sturdy Boom Stand for Maximum Versatility and Working Area!
  • The Dual Arm with Counterweight on this Boom Stand gives Better Stability than a Normal Stand.
  • Multi-Axis Rotation: This Boom Stand can rotate the scope head on any angle to view hard to see places. This is something that few booms can do. For example, if checking solder connections on a circuit board, this head can be rotated for better inspection.
Eyepieces and Magnification
  • Zoom Range: 7x – 45x Continuous Magnification.
  • Eyepiece Set Included: 30mm Wide Field 10x.

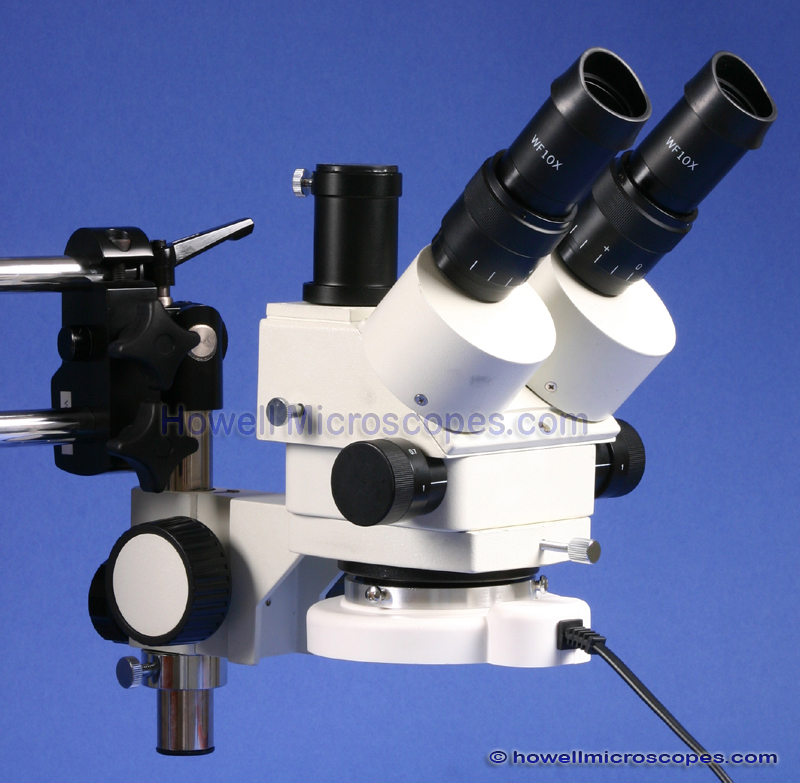

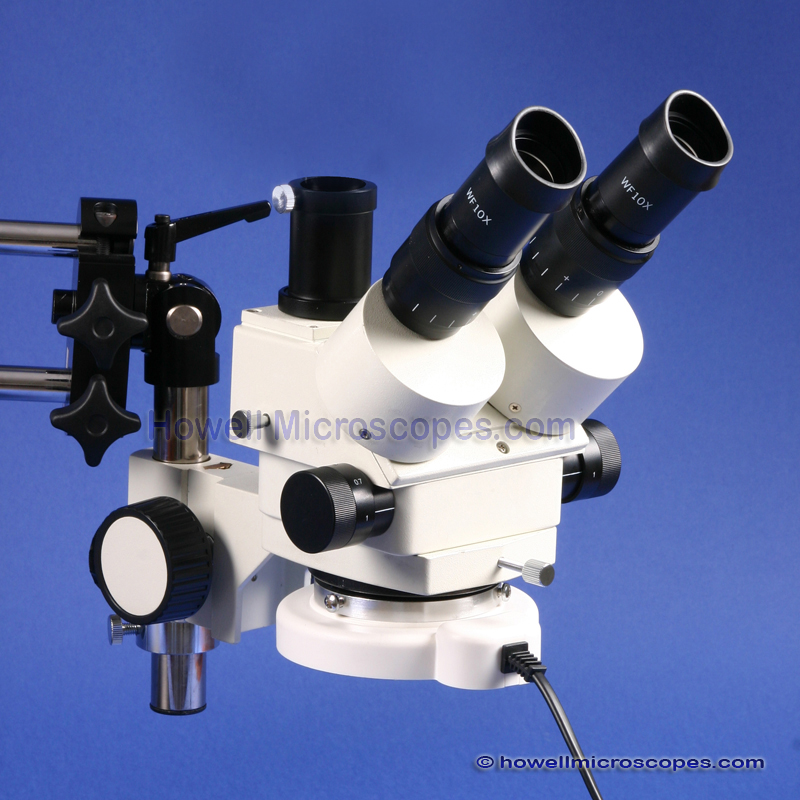

Microscope Head Details
  • 45 Degree Inclined Trinocular Head, Rotatable 360 Degrees.
  • Adjusts to the Distance Between your Eyes: 50 to 66mm InterPupillary Distance.
  • Diopter Adjustment on Both Oculars to Correct for Your Specific Vision Needs.
Illumination
  • Includes Fluorescent Ring Light for Bright and Even Illumination.
Focusing and Working Distance
  • Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
  • Rack and Pinion Steel Gears for Focus Movement.
  • Nice Working Distance to Allow Room for Your Tools. (Distance from Bottom of Lens on Head to Top of Object in Focus) 90mm (3 1/2 Inches).
Frame – Base – Size – Weight
  • Heavy Solidly Built Boom Stand.
  • Solid Steel Boom Stand Base Plate.
  • Shipping Weight of Boom Stand (no scope head) is 51 Lbs.
Included Items
  • Includes Rubber Eye Guards for Blocking Stray Light.
Options
  • Optional 25x Eyepieces will Increase Magnification Up to 112.5x.
  • Optional Bottom Lens to Increase or Decrease Magnification or Change Working Distance.
Additional Information
  • Manufactured under ISO: 9001 Standards.
  • Protective Molded Styrofoam Container.
  • Precision Ground Glass Lens.
  • Quality Construction, Metal Frame.
  • 110 VAC (email about 220V availability).
  • 100% Brand New!
1 Year Manufacturer's Warranty
  • The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
  • If your system needs repair, simply let us know and we will see that it is back in service ASAP.

1 in stock

SKU: hm003tb20m Category:

Product Description

Microscope Product Overview

  • Boom Stand Mounted Stereo Trinocular Zoom Microscope!
  • Great for Repair of Small Items or for Circuit Board Repair and Rework!
  • Bright and Clear 3-D Stereoscopic Images through High Quality Zoom Optics!
  • Great Economical Price! Priced Hundreds Lower than Competition!
